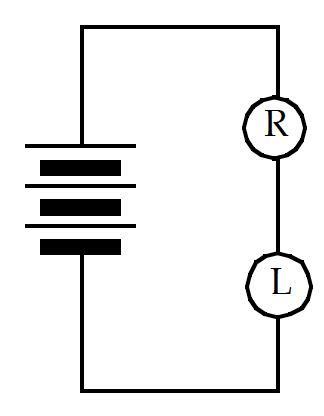

For the circuit below (the same as the question above), which bulb has a bigger flow rate?
For the circuit below (the same as the question above), which bulb has a bigger flow rate?
Mastery checks are pledged activities. You may ONLY use: a calculator. No assistance from notes, friends, the internet, etc.
You may write "I pledge" and sign your name here.
Color-code the wires in this steady state circuit. Draw arrowtails and starbursts for each bulb.
For the circuit below (the same as the question above), which bulb has a bigger flow rate?
For the circuit below (the same as the question above), which bulb has a bigger electric pressure difference?

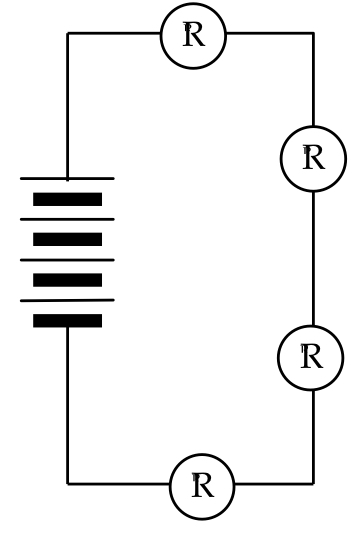

Color-code the wires in this steady state circuit. Draw arrowtails and starbursts for each bulb.
For the circuit below (the same as the question above), which bulb is the brightest?

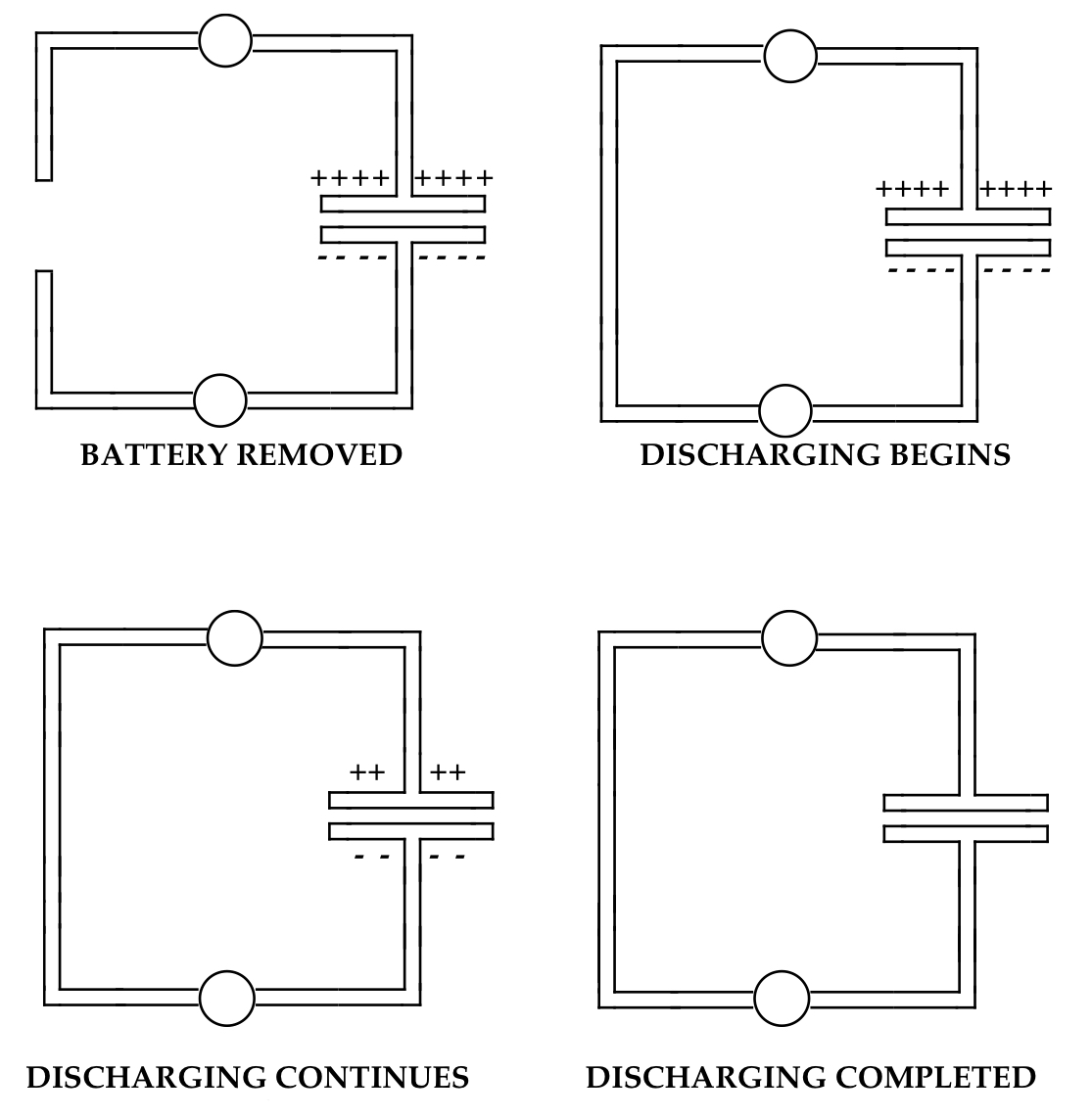

Color code the following steps of a capacitor being DISCHARGED.
