STIG AS Level Raster vs Vector

Drawing Objects

• Drawing objects are the basic building blocks of a vector graphic.
• Common drawing objects include lines, curves, shapes (rectangles, ellipses, polygons), and text.
• Each drawing object is defined by a set of properties that determine its appearance and position.

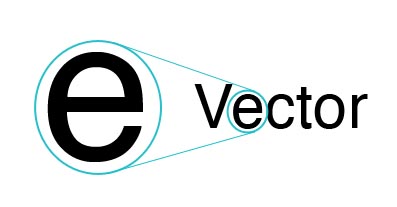

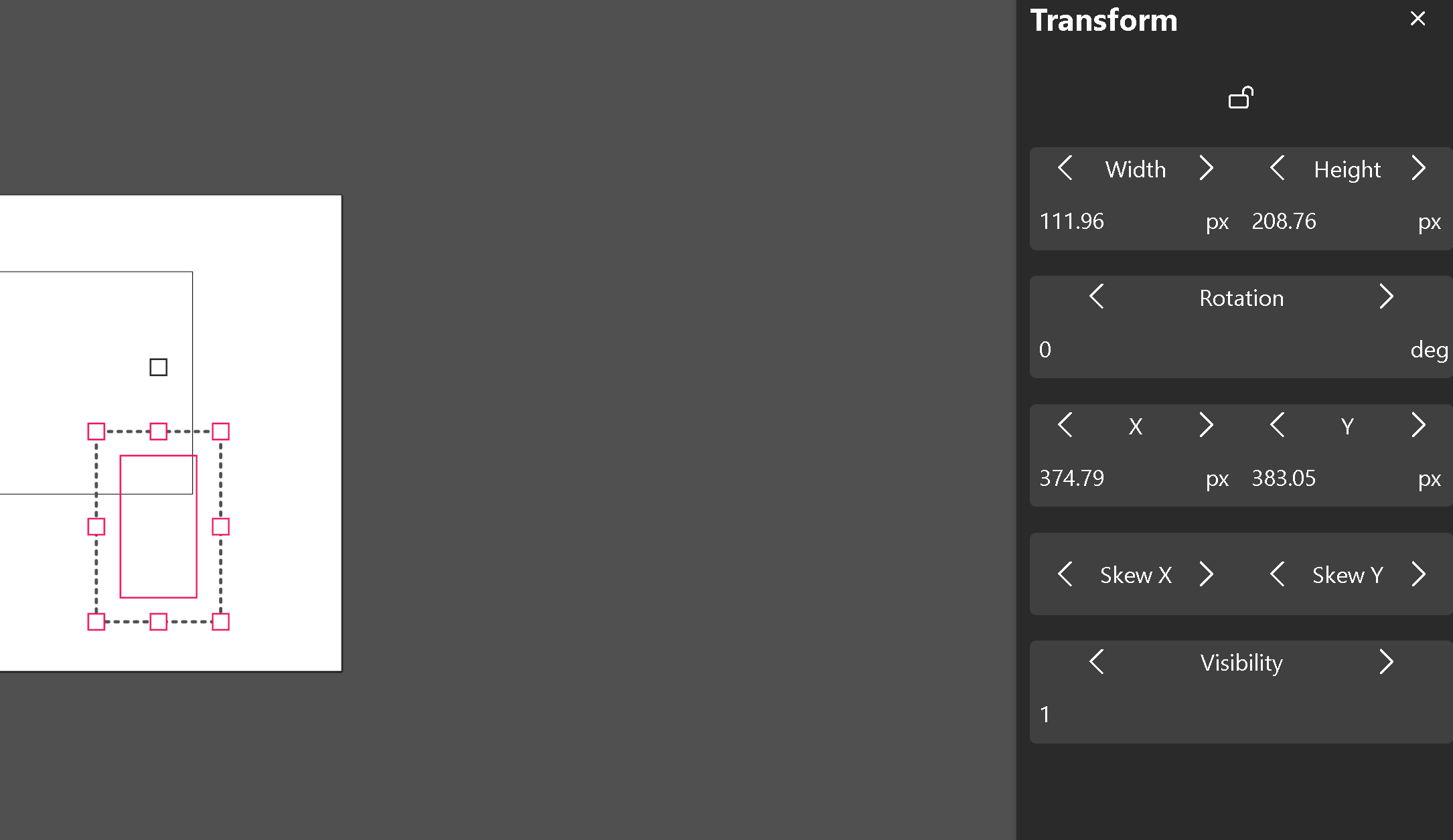

Properties - like variables

• Properties are attributes that define the characteristics of a drawing object.
• Some common properties include:

• Properties are stored as key-value pairs associated with each drawing object.

Drawing List

• A drawing list, also known as a display list or a scene graph, is a data structure that stores the sequence of drawing objects and their properties.
• The drawing list represents the complete vector graphic image.
• When rendering the vector graphic, the drawing objects are processed in the order they appear in the drawing list.
• Drawing lists allow for efficient rendering and manipulation of vector graphics.

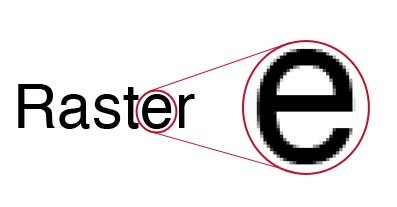

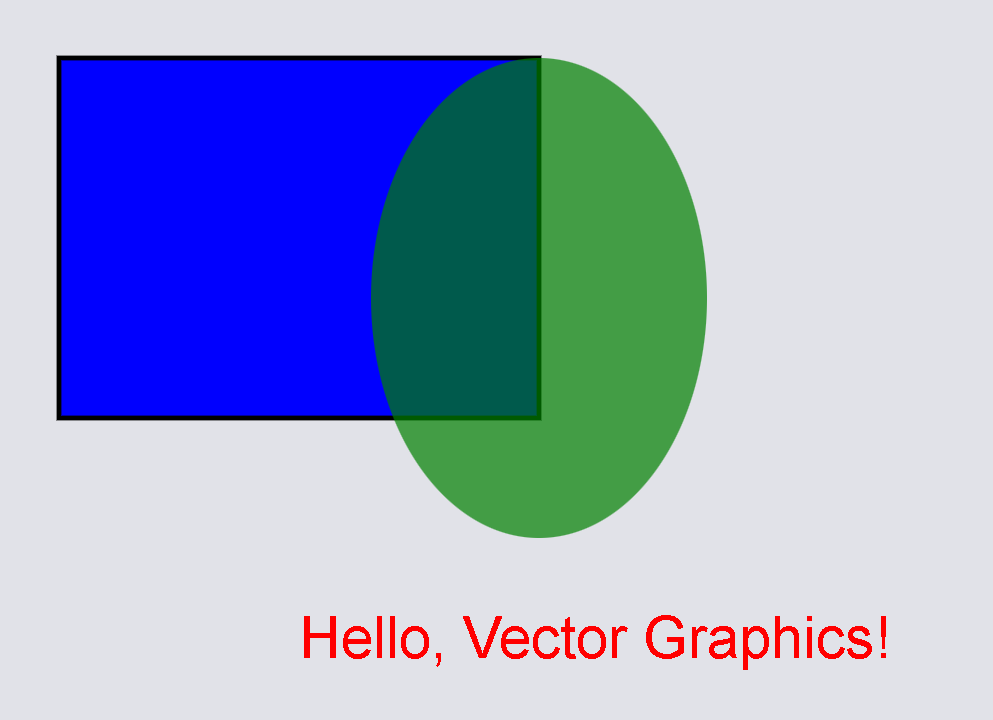

Copydrawing_list = [
  {
    type: "rectangle",
    x: 100, y: 100,
    width: 200, height: 150,
    fill_color: "blue",
    stroke_color: "black",
    stroke_width: 2
  },
  {
    type: "ellipse",
    cx: 300, cy: 200,
    rx: 70, ry: 100,
    fill_color: "green",
    opacity: 0.7
  },
  {
    type: "text",
    x: 200, y: 350,
    content: "Hello, Vector Graphics!",
    font: "Arial",
    font_size: 24,
    fill_color: "red"
  }
]
