Label Energy Transformation Diagrams 10/9
By Bonnie Coldiron
star
star
star
star
star
Share
share
Last updated over 1 year ago
10 questions
Add this activity
Note from the author:
Amplify HHE
Use the images to answer all the questions
zoom_in
Required
1
Required
1
Required
1
Required
2
Required
1
zoom_in
1
Required
1
Required
1
Required
1
Required
2
Question 1
1.
Question 2
2.
Question 3
3.
The Total Energy in = __________
Question 4
4.
Energy Out
Light = __________
Thermal = __________
Sound = __________
If I add, Light and Thermal together, I get __________
Question 5
5.
Question 6
6.
Question 7
7.
Question 8
8.
Question 9
9.
The Total Energy in = __________
Question 10
10.
Energy Out
Light = __________
Thermal = __________
Sound = __________
If I add, Thermal together Sound, I get __________

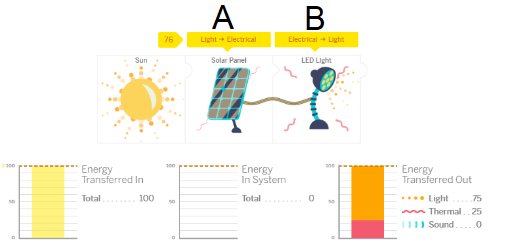

In Image 1, what energy transformation is happening at A?
Light (Radiant) into Electrical
Electrical into Light (Radiant)
Sound into Electrical
In Image 1, what energy transformation is happening at B?
Light (Radiant) into Electrical
Sound into Electrical
Electrical into Light (Radiant)
100 was transferred IN the system and 100 was transferred OUT of the system
True
False

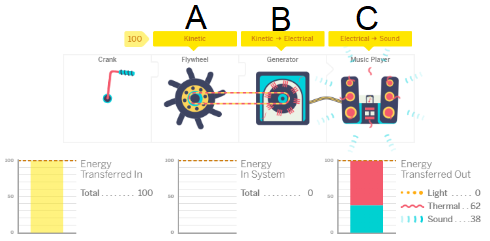

In Image 2, what energy transformation is happening at A?
Motion energy (KE) into Motion energy (KE)
Motion energy(KE) into Sound energy
Electrical energy into Motion energy(KE)
Sound energy into Motion Energy(KE)
In Image 2, what energy transformation is happening at B?
Motion energy(KE) into Sound energy
Electrical energy into Motion energy(KE)
Motion energy Into Electrical energy
Electrical Into Sound
In Image 2, what energy transformation is happening at C?
Motion energy(KE) into Motion energy(KE)
Electrical energy into Motion energy(KE)
Sound energy into Motion Energy(KE)
Electrical Into Sound
