Attempting to extrude the following sketch results in an error message and the extrusion fails. What is the most likely mistake?

2

A cast iron cylinder serves as a counterbalance that is used in a window manufacturer's double-hung window design. The cylinder has a height of 4 in and a diameter of 2 in. the weight density of cast iron is 0.259 lb/in3. What is the surface area of the cylinder?

2

1

The basic dimension on a detail drawing that indicates the distance from bottom to top.

1

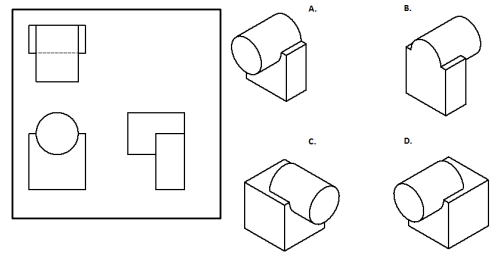

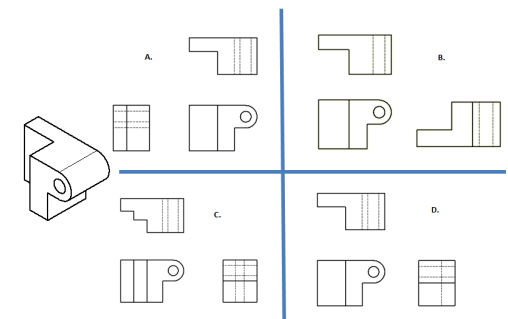

Which drawing most represents an Orthographic view from a multi-view drawing?
(Click on the correct answer)

1

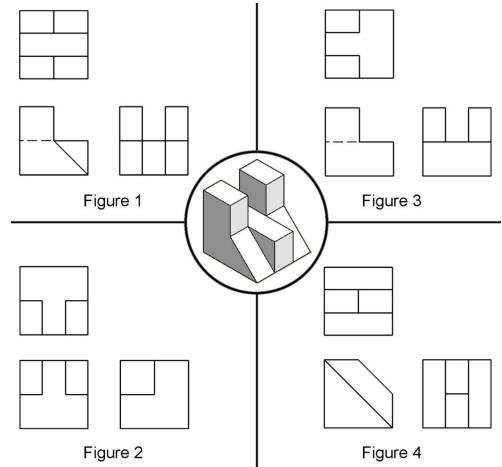

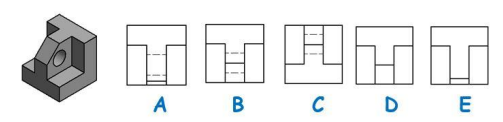

Which of the following could be the object represented in the Front, Top, Right view multiview drawing? (Click on the correct response.)

4

Match the product/process with the engineering discipline.

Draggable item		Corresponding Item
Power Grid Systems		Chemical Engineering
Bridges, Buildings, Highways, and Transit Systems		Electrical Engineering
Plastics, Synthetics and Textiles

2

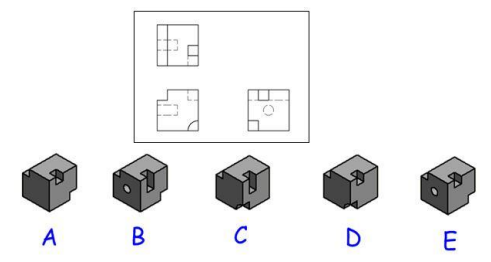

Which orthographic projection matches the given isometric? (Click on the correct answer)

1

2

Match the given orthographic projection to the corresponding isometric. (Click on the correct answer)

1

In what step of the Design Process does the designer interview the client?

1

Which figure contains a multi-view drawing that is associated with the given pictorial? (Click on the correct figure.)

1

On an orthographic drawing, which view shows both the width and depth?

1

A short dashed line that represents a feature of the object not visible in the picture is called a _________.

3

1

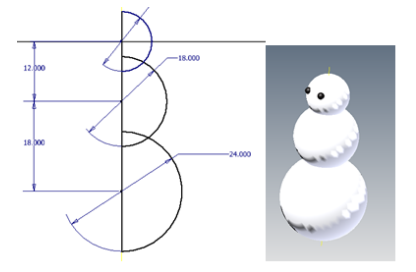

What 3D feature utilizes the 2D sketch in order to make the snowman in the image below?

1

A(n) ____________ is a person who is trained in and uses technological and scientific knowledge to solve practical problems.

2

1

If a designer / engineer needs to calculate how many quarts of paint are needed to double coat 500 of one particular part in an assembly, what physical property would they need to know?

1

65.14 m3 is the answer to a physical property calculation. What physical property calculation does it represent?

2

A cast iron cylinder serves as a counterbalance that is used in a window manufacturer's double-hung window design. The cylinder has a height of 4 in and a diameter of 2 in. The weight density of cast iron is 0.259 lb/in3. What is the volume of the cylinder?

2

A wood board is one of a dozen different parts in a homemade robot kit. the width, depth, and height dimensions are 2 in x 3 in x 8 in respectively. The board is made from southern yellow pine, which has a weight density of 0.021 lb/in3. What is the weight of the board?

3

Put the steps of the PLTW Engineering Design Process in the correct order.

Present the Solution
Develop a Solution
Generate Concepts
Define the Problem
Construct and Test a Prototype
Evaluate the Solution

1

In a multiview drawing, the front view should be located on the...

1

Which direction contains an unnecessary dimension?

1

Which of the following is the top view for the figure given? (Click on the correct response.)

1

When creating a multiview in Fusion, which view should be placed first?

2

A cast iron cylinder serves as a counterbalance that is used in a window manufacturer's double-hung window design. The cylinder has a height of 4 in and a diameter of 2 in. The weight density of cast iron is 0.259 lb/in3. What is the weight of the cylinder?

1

4

Match the physical property to the corresponding scenario.

Draggable item		Corresponding Item
A student has designed a part for an assembly. The student has three materials to choose from to make the prototype but the overall weight is a concern.		Volume
TCD Designs wants to order enough material to paint 500 puzzle parts.		Surface Area
		Mass

2

Choose the CAD sketching tool that has been used to create the image on the right from the image on the left.

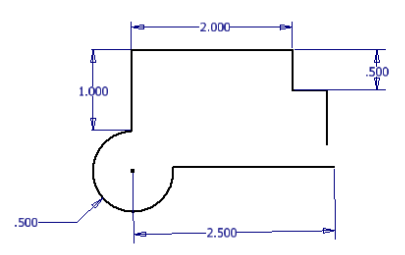

Attempting to extrude the following sketch results in an error message and the extrusion fails. What is the most likely mistake?

A cast iron cylinder serves as a counterbalance that is used in a window manufacturer's double-hung window design. The cylinder has a height of 4 in and a diameter of 2 in. the weight density of cast iron is 0.259 lb/in3. What is the surface area of the cylinder?

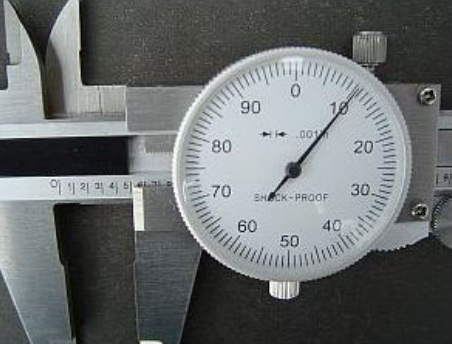

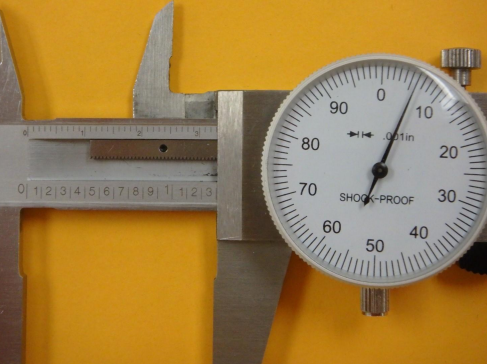

What is the value shown on the dial caliper?

Which direction contains duplicate dimensions?

The basic dimension on a detail drawing that indicates the distance from bottom to top.

Which drawing most represents an Orthographic view from a multi-view drawing?
(Click on the correct answer)

Which pair of letters show an unnecessary dimension?

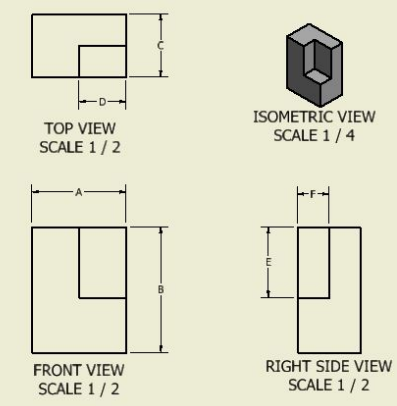

Which pair of letters show dimensions that describe DEPTH?

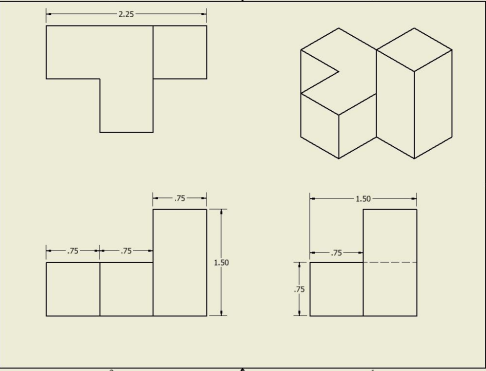

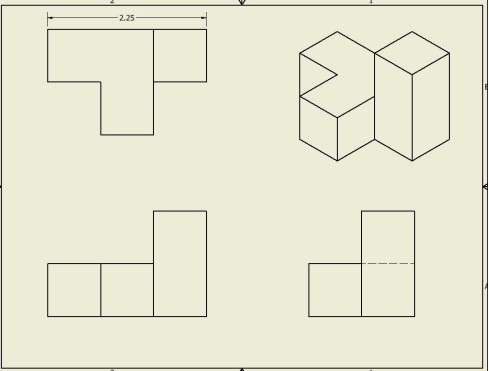

The dimension labeled 2.25 represents the ______ of the object.

Which of the following could be the object represented in the Front, Top, Right view multiview drawing? (Click on the correct response.)

Match the product/process with the engineering discipline.

Draggable item		Corresponding Item
Power Grid Systems		Chemical Engineering
Bridges, Buildings, Highways, and Transit Systems		Electrical Engineering
Plastics, Synthetics and Textiles		Civil Engineering
Machine design, gears, and bearings		Mechanical Engineering

Which orthographic projection matches the given isometric? (Click on the correct answer)

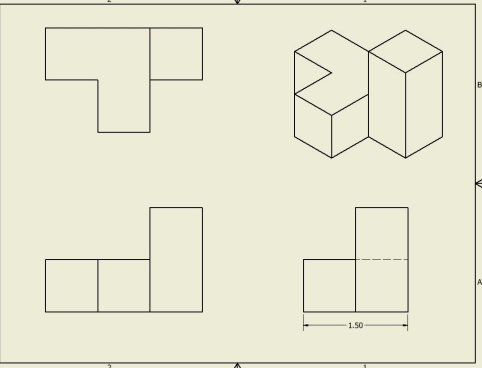

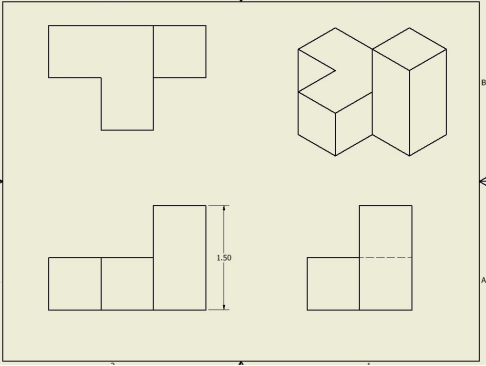

The dimension labeled 1.50 represents the ______ of the object.

Match the given orthographic projection to the corresponding isometric. (Click on the correct answer)

In what step of the Design Process does the designer interview the client?

Which figure contains a multi-view drawing that is associated with the given pictorial? (Click on the correct figure.)

On an orthographic drawing, which view shows both the width and depth?

A short dashed line that represents a feature of the object not visible in the picture is called a _________.

The most common views used in a three-view, orthographic drawings are... (Choose 3 answers)

An improvement of an existing technological product, system, or method is referred to as a(n) ______________.

What 3D feature utilizes the 2D sketch in order to make the snowman in the image below?

A(n) ____________ is a person who is trained in and uses technological and scientific knowledge to solve practical problems.

Which answer correctly indicated the measured value on the dial caliper?

If a designer / engineer needs to calculate how many quarts of paint are needed to double coat 500 of one particular part in an assembly, what physical property would they need to know?

65.14 m3 is the answer to a physical property calculation. What physical property calculation does it represent?

A cast iron cylinder serves as a counterbalance that is used in a window manufacturer's double-hung window design. The cylinder has a height of 4 in and a diameter of 2 in. The weight density of cast iron is 0.259 lb/in3. What is the volume of the cylinder?

A wood board is one of a dozen different parts in a homemade robot kit. the width, depth, and height dimensions are 2 in x 3 in x 8 in respectively. The board is made from southern yellow pine, which has a weight density of 0.021 lb/in3. What is the weight of the board?

Put the steps of the PLTW Engineering Design Process in the correct order.

Present the Solution
Develop a Solution
Generate Concepts
Define the Problem
Construct and Test a Prototype
Evaluate the Solution

In a multiview drawing, the front view should be located on the...

The dimension labeled 1.50 represents the _____ of the object.

What type of drawing/view is shown?

Which direction contains an unnecessary dimension?

Which of the following is the top view for the figure given? (Click on the correct response.)

When creating a multiview in Fusion, which view should be placed first?

A cast iron cylinder serves as a counterbalance that is used in a window manufacturer's double-hung window design. The cylinder has a height of 4 in and a diameter of 2 in. The weight density of cast iron is 0.259 lb/in3. What is the weight of the cylinder?

In Fusion, what constraint would you use to place a pin inside a hole that should be able to rotate?

Match the physical property to the corresponding scenario.

Draggable item		Corresponding Item
A student has designed a part for an assembly. The student has three materials to choose from to make the prototype but the overall weight is a concern.		Volume
TCD Designs wants to order enough material to paint 500 puzzle parts.		Surface Area
A student has just modeled an attractive and practical hydration system for ultra-distance runners but does not know how many ounces the container holds.		Mass
A robotics team wants to calculate the cost to ship their robot to various competitions. FedEx charges $68.59 / 50 lb.		Density

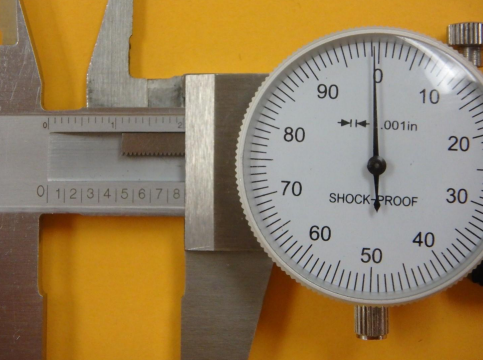

What is the value shown on the dial caliper?

A wood board is one of a dozen different parts in a homemade robot kit. the width, depth, and height dimensions are 2 in x 3 in x 8 in respectively. The board is made from southern yellow pine, which has a weight density of 0.021 lb/in3. If one quart of paint will cover 12,000 square inches, how many quarts would be needed to paint 2500 boards?

Choose the CAD sketching tool that has been used to create the image on the right from the image on the left.

lock

pattern

concentric

fix

offset

The profile is not dimensioned properly.

The profile is not a closed loop.

The shape is too complex.

The sketch tool has not been activated.

37.699 in2

75.398 in2

25.133 in2

31.416 in2

28.274 in2

8.137 in2

What is the value shown on the dial caliper?

8.992

0.99

0.701

0.801

0.901

0.899

2.99

0.799

Which direction contains duplicate dimensions?

strength

density

length

height

depth

width

mass

height

stack

width

depth

overall block

length

Which pair of letters show an unnecessary dimension?

A & F

B & D

F & G

C & E

A & G

D & E

A & E

Which pair of letters show dimensions that describe DEPTH?

B & E

C & F

D & F

E & F

B & C

The dimension labeled 2.25 represents the ______ of the object.

width

strength

depth

height

length

side

density

volume

surface area

Civil Engineering

Machine design, gears, and bearings

Mechanical Engineering

The dimension labeled 1.50 represents the ______ of the object.

strength

depth

width

mass

density

length

height

Evaluate Solution

Present the Solution

top

right

front

left

side

oblique

hidden line

isolated line

construction line

invisible line

object line

center line

The most common views used in a three-view, orthographic drawings are... (Choose 3 answers)

perspective

top

back

oblique

hidden

right

left

bottom

front

An improvement of an existing technological product, system, or method is referred to as a(n) ______________.

serendipitous event

design copying

engineering theft

innovation

technological change

inventio

chaotic improvement

loft

revolve

extrude

Which answer correctly indicated the measured value on the dial caliper?

0.10

0.410

0.510

0.105

5.10

weight

density

mass

density

length

width

volume

center of gravity

area

12.566 in3

13.019 in3

50.265 in3

100.531 in3

3.255 in3

26.038 in3

1.932 lb

2.517 lb

48 lb

The dimension labeled 1.50 represents the _____ of the object.

volume

depth

width

height

length

area

density

What type of drawing/view is shown?

multiview

section

perspective

oblique

isometric

width

length

height

top

right

front

isometric

bottom

left

13.019 lbs

3.255 lbs

1.468 lbs

5.174 lbs

50.265 lbs

12.566 lbs

In Fusion, what constraint would you use to place a pin inside a hole that should be able to rotate?

slider

circle joint

flush

tangent

fixed constraint

mate

revolute

A student has just modeled an attractive and practical hydration system for ultra-distance runners but does not know how many ounces the container holds.

A robotics team wants to calculate the cost to ship their robot to various competitions. FedEx charges $68.59 / 50 lb.

Density

What is the value shown on the dial caliper?

1.306

3.306

1.314

1.406

3.06

A wood board is one of a dozen different parts in a homemade robot kit. the width, depth, and height dimensions are 2 in x 3 in x 8 in respectively. The board is made from southern yellow pine, which has a weight density of 0.021 lb/in3. If one quart of paint will cover 12,000 square inches, how many quarts would be needed to paint 2500 boards?

97 quarts

442 quarts

326,087 quarts

19 quarts

230,000 quarts

1 quart

20 quarts

IED Q2 Exam (2025)

IED Q2 Exam (2025)

Attempting to extrude the following sketch results in an error message and the extrusion fails. What is the most likely mistake?

A cast iron cylinder serves as a counterbalance that is used in a window manufacturer's double-hung window design. The cylinder has a height of 4 in and a diameter of 2 in. the weight density of cast iron is 0.259 lb/in3. What is the surface area of the cylinder?

The basic dimension on a detail drawing that indicates the distance from bottom to top.

Which drawing most represents an Orthographic view from a multi-view drawing?(Click on the correct answer)

Which of the following could be the object represented in the Front, Top, Right view multiview drawing? (Click on the correct response.)

Match the product/process with the engineering discipline.

Which orthographic projection matches the given isometric? (Click on the correct answer)

Match the given orthographic projection to the corresponding isometric. (Click on the correct answer)

In what step of the Design Process does the designer interview the client?

Which figure contains a multi-view drawing that is associated with the given pictorial? (Click on the correct figure.)

On an orthographic drawing, which view shows both the width and depth?

A short dashed line that represents a feature of the object not visible in the picture is called a _________.

What 3D feature utilizes the 2D sketch in order to make the snowman in the image below?

A(n) ____________ is a person who is trained in and uses technological and scientific knowledge to solve practical problems.

If a designer / engineer needs to calculate how many quarts of paint are needed to double coat 500 of one particular part in an assembly, what physical property would they need to know?

65.14 m3 is the answer to a physical property calculation. What physical property calculation does it represent?

A cast iron cylinder serves as a counterbalance that is used in a window manufacturer's double-hung window design. The cylinder has a height of 4 in and a diameter of 2 in. The weight density of cast iron is 0.259 lb/in3. What is the volume of the cylinder?

A wood board is one of a dozen different parts in a homemade robot kit. the width, depth, and height dimensions are 2 in x 3 in x 8 in respectively. The board is made from southern yellow pine, which has a weight density of 0.021 lb/in3. What is the weight of the board?

Put the steps of the PLTW Engineering Design Process in the correct order.

In a multiview drawing, the front view should be located on the...

Which direction contains an unnecessary dimension?

Which of the following is the top view for the figure given? (Click on the correct response.)

When creating a multiview in Fusion, which view should be placed first?

A cast iron cylinder serves as a counterbalance that is used in a window manufacturer's double-hung window design. The cylinder has a height of 4 in and a diameter of 2 in. The weight density of cast iron is 0.259 lb/in3. What is the weight of the cylinder?

Match the physical property to the corresponding scenario.

Choose the CAD sketching tool that has been used to create the image on the right from the image on the left.

Attempting to extrude the following sketch results in an error message and the extrusion fails. What is the most likely mistake?

A cast iron cylinder serves as a counterbalance that is used in a window manufacturer's double-hung window design. The cylinder has a height of 4 in and a diameter of 2 in. the weight density of cast iron is 0.259 lb/in3. What is the surface area of the cylinder?

What is the value shown on the dial caliper?

Which direction contains duplicate dimensions?

The basic dimension on a detail drawing that indicates the distance from bottom to top.

Which drawing most represents an Orthographic view from a multi-view drawing?(Click on the correct answer)

Which pair of letters show an unnecessary dimension?

Which pair of letters show dimensions that describe DEPTH?

The dimension labeled 2.25 represents the ______ of the object.

Which of the following could be the object represented in the Front, Top, Right view multiview drawing? (Click on the correct response.)

Match the product/process with the engineering discipline.

Which orthographic projection matches the given isometric? (Click on the correct answer)

The dimension labeled 1.50 represents the ______ of the object.

Match the given orthographic projection to the corresponding isometric. (Click on the correct answer)

In what step of the Design Process does the designer interview the client?

Which figure contains a multi-view drawing that is associated with the given pictorial? (Click on the correct figure.)

On an orthographic drawing, which view shows both the width and depth?

A short dashed line that represents a feature of the object not visible in the picture is called a _________.

The most common views used in a three-view, orthographic drawings are... (Choose 3 answers)

An improvement of an existing technological product, system, or method is referred to as a(n) ______________.

What 3D feature utilizes the 2D sketch in order to make the snowman in the image below?

A(n) ____________ is a person who is trained in and uses technological and scientific knowledge to solve practical problems.

Which answer correctly indicated the measured value on the dial caliper?

If a designer / engineer needs to calculate how many quarts of paint are needed to double coat 500 of one particular part in an assembly, what physical property would they need to know?

65.14 m3 is the answer to a physical property calculation. What physical property calculation does it represent?

A cast iron cylinder serves as a counterbalance that is used in a window manufacturer's double-hung window design. The cylinder has a height of 4 in and a diameter of 2 in. The weight density of cast iron is 0.259 lb/in3. What is the volume of the cylinder?

A wood board is one of a dozen different parts in a homemade robot kit. the width, depth, and height dimensions are 2 in x 3 in x 8 in respectively. The board is made from southern yellow pine, which has a weight density of 0.021 lb/in3. What is the weight of the board?

Put the steps of the PLTW Engineering Design Process in the correct order.

In a multiview drawing, the front view should be located on the...

The dimension labeled 1.50 represents the _____ of the object.

What type of drawing/view is shown?

Which direction contains an unnecessary dimension?

Which of the following is the top view for the figure given? (Click on the correct response.)

When creating a multiview in Fusion, which view should be placed first?

A cast iron cylinder serves as a counterbalance that is used in a window manufacturer's double-hung window design. The cylinder has a height of 4 in and a diameter of 2 in. The weight density of cast iron is 0.259 lb/in3. What is the weight of the cylinder?

In Fusion, what constraint would you use to place a pin inside a hole that should be able to rotate?

Match the physical property to the corresponding scenario.

What is the value shown on the dial caliper?

Which drawing most represents an Orthographic view from a multi-view drawing?
(Click on the correct answer)

Which drawing most represents an Orthographic view from a multi-view drawing?
(Click on the correct answer)
