Categorize the following items as a structure or not a structure.

Motion
Energy
A shoe
A house
Air
A teapot
A puddle of water
A pencil
The human body
Force

A STRUCTURE
NOT A STRUCTURE

Required

Match the description with its structural force.

Draggable item		Corresponding Item
Squeezing and Stretching on different sides		Torsion
Sliding past each other		Tension
Twisting		Compression
Squeezing		Shear
Stretching		Bending

Required

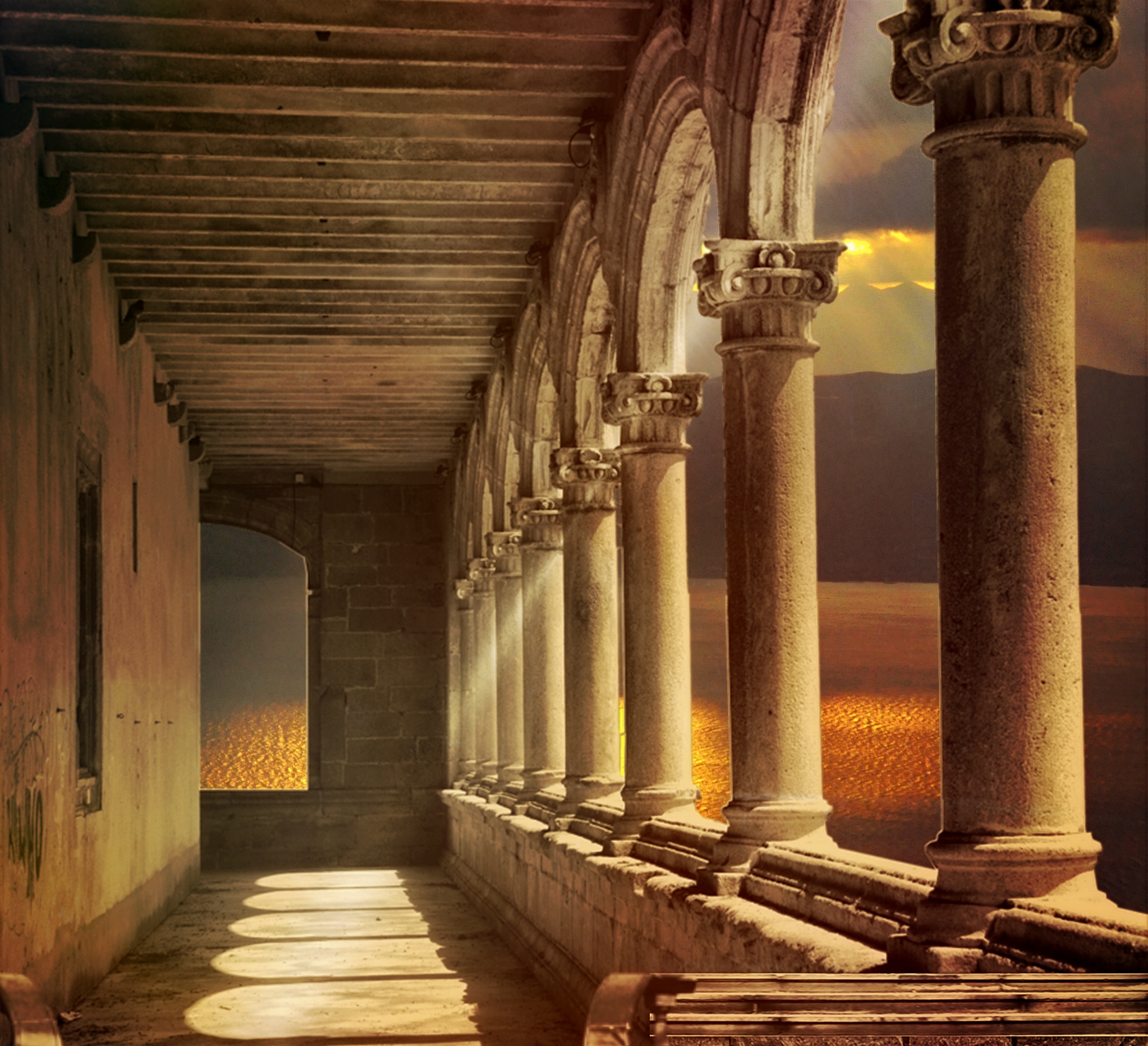

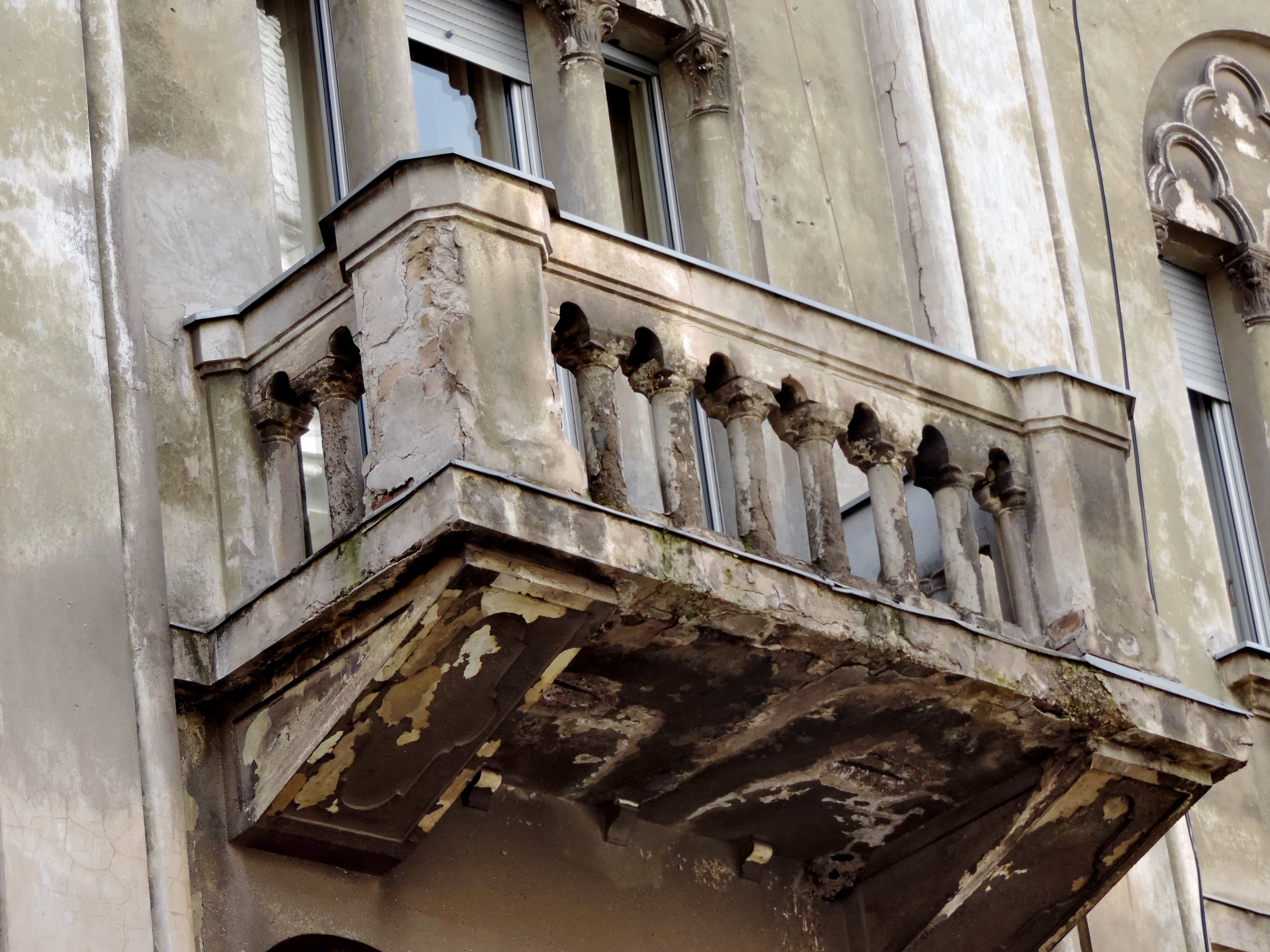

Match the structural component with its image.

Draggable item		Corresponding Item
Beam
Column
Cantilever

Required

Label the forces of tension and compression on the tightrope, and then add the arrows showing the direction of the forces.

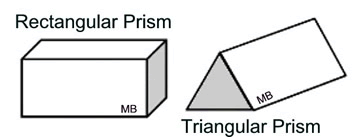

A friend of yours needs to send a painting via mail. They plan to roll the painting up and put it into a box. There are two options available at the post office. One is a long, rectangular prism, and the other is a long, triangular prism (as shown in image below). Explain which box you would recommend to best protect the painting.

Required

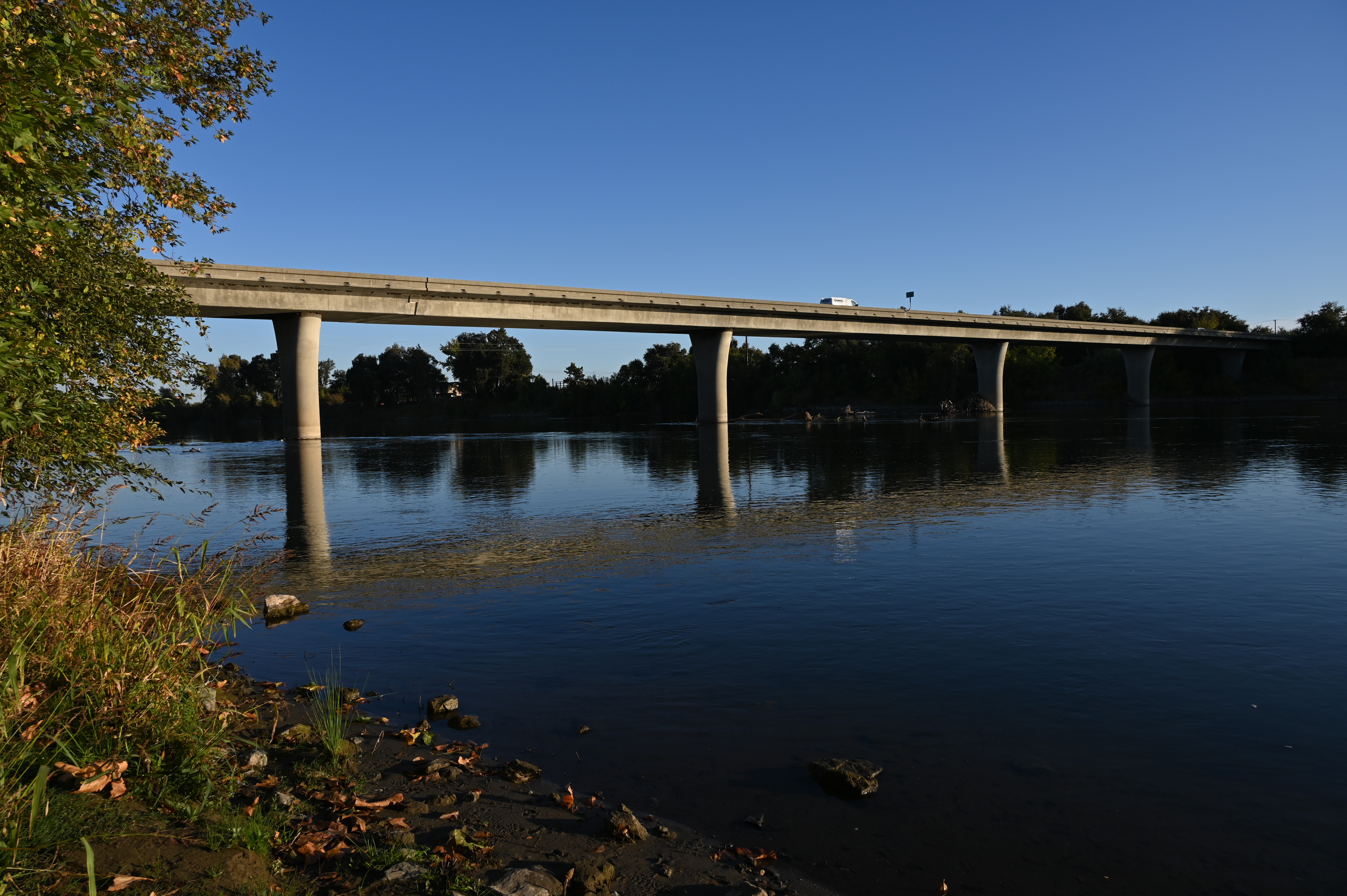

Which structural forces are acting on this bridge as a truck drives across it? Label all forces with the name of the force and arrows.

Required

Unit 2 Quiz 2 Review Structural Forces 24.25

Unit 2 Quiz 2 Review Structural Forces 24.25

Categorize the following items as a structure or not a structure.

A STRUCTURE

NOT A STRUCTURE

Match the description with its structural force.

Match the structural component with its image.

Which structural forces are acting on this bridge as a truck drives across it? Label all forces with the name of the force and arrows.

Draw the structural forces acting on a rectangle. Your drawing should include arrows showing the direction of the force and the name of each force.
