6 questions
1
Mastery checks are pledged activities. You may ONLY use: a calculator. No assistance from notes, friends, the internet, etc. You may write "I pledge" and sign your name here.
Mastery checks are pledged activities. You may ONLY use: a calculator. No assistance from notes, friends, the internet, etc.
You may write "I pledge" and sign your name here.
1
If two lightbulbs are in a parallel circuit, the total resistance in the circuit decreases.
If two lightbulbs are in a parallel circuit, the total resistance in the circuit decreases.
1
If you increase the number of lightbulbs in a series circuit the total current through the circuit increases.
If you increase the number of lightbulbs in a series circuit the total current through the circuit increases.
1

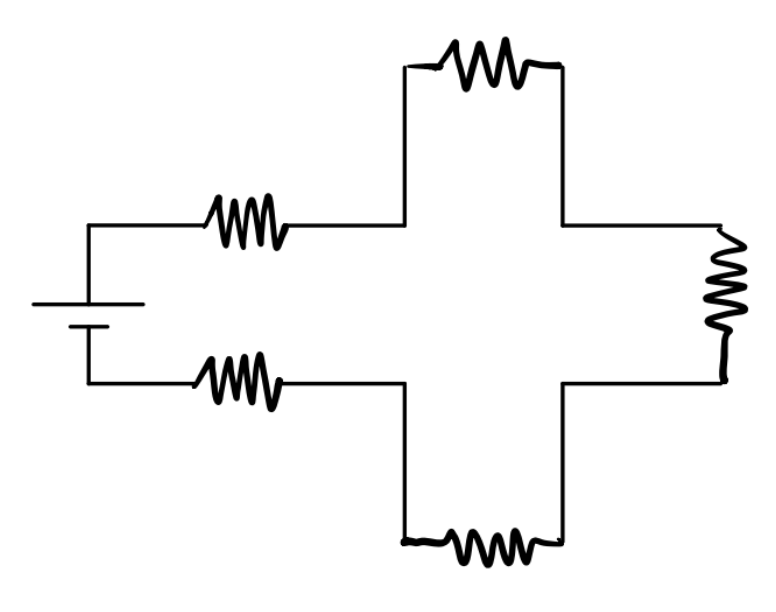

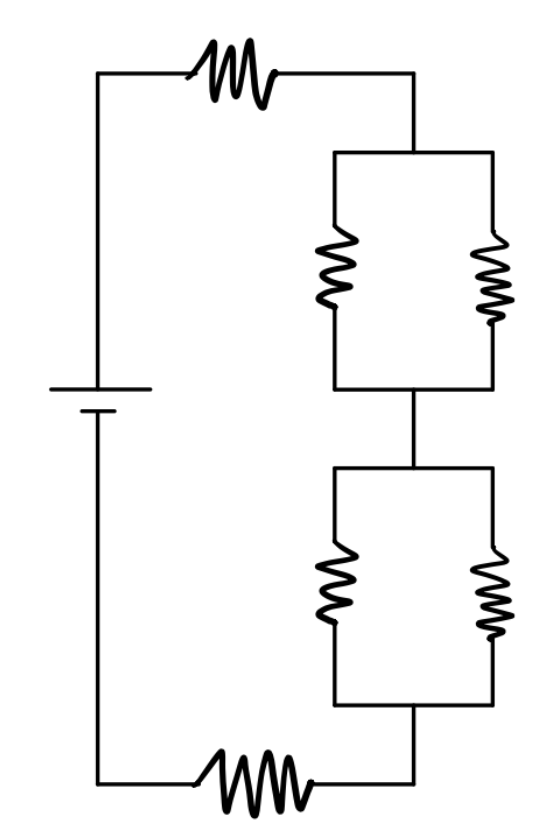

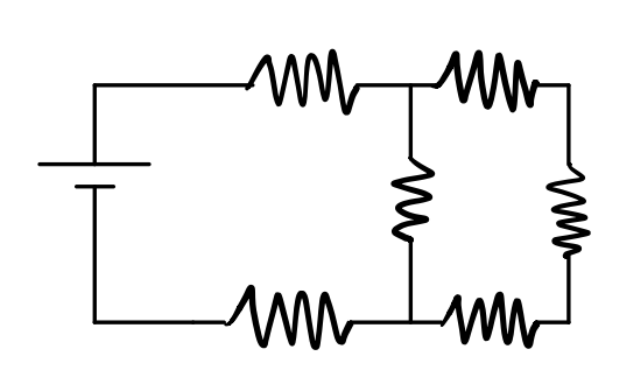

Categorize each of the circuits as either a series circuit, a parallel circuit or a more complicated circuit (not a simple series or parallel circuit).
Categorize each of the circuits as either a series circuit, a parallel circuit or a more complicated circuit (not a simple series or parallel circuit).
- Series Circuit
- Parallel Circuit
- Not a Simple Series or Parallel Circuit
3
For the circuit below, find the total resistance, the total current produced by the battery, and the current in the 5 \Omega resistor.
For the circuit below, find the total resistance, the total current produced by the battery, and the current in the 5 \Omega resistor.
3
For the circuit below, find the total resistance, the current in the circuit, and the voltage across the 2 \Omega resistor.
For the circuit below, find the total resistance, the current in the circuit, and the voltage across the 2 \Omega resistor.
