6 questions
1
Mastery checks are pledged activities. You may ONLY use: a calculator. No assistance from notes, friends, the internet, etc. You may write "I pledge" and sign your name here.
Mastery checks are pledged activities. You may ONLY use: a calculator. No assistance from notes, friends, the internet, etc.
You may write "I pledge" and sign your name here.
1
If two lightbulbs are in a parallel circuit, the voltage of each of the lightbulbs is the same.
If two lightbulbs are in a parallel circuit, the voltage of each of the lightbulbs is the same.
1
If lightbulbs are in series with each other all of the currents through the lightbulbs are the same.
If lightbulbs are in series with each other all of the currents through the lightbulbs are the same.
1

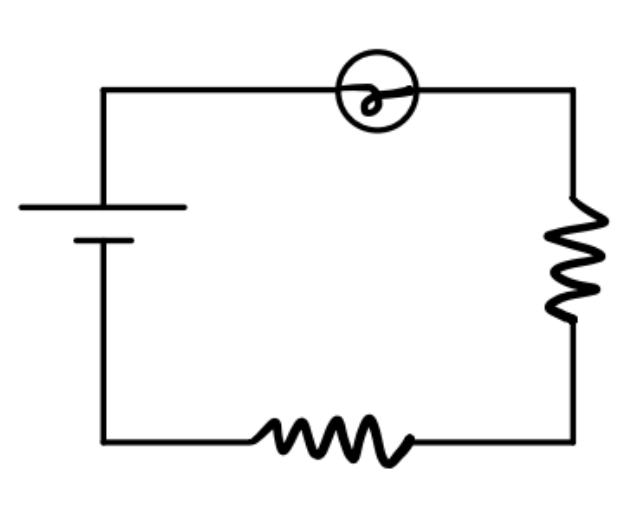

Categorize each of the circuits as either a series circuit, a parallel circuit or a more complicated circuit (not a simple series or parallel circuit).
Categorize each of the circuits as either a series circuit, a parallel circuit or a more complicated circuit (not a simple series or parallel circuit).
- Series Circuit
- Parallel Circuit
- Not a Simple Series or Parallel Circuit
3
For the circuit below, find the total resistance, the total current produced by the battery, and the current in the 3 \Omega resistor.
For the circuit below, find the total resistance, the total current produced by the battery, and the current in the 3 \Omega resistor.
3
For the circuit below, find the total resistance, the current in the circuit and the voltage across the 3 \Omega resistor.
For the circuit below, find the total resistance, the current in the circuit and the voltage across the 3 \Omega resistor.
