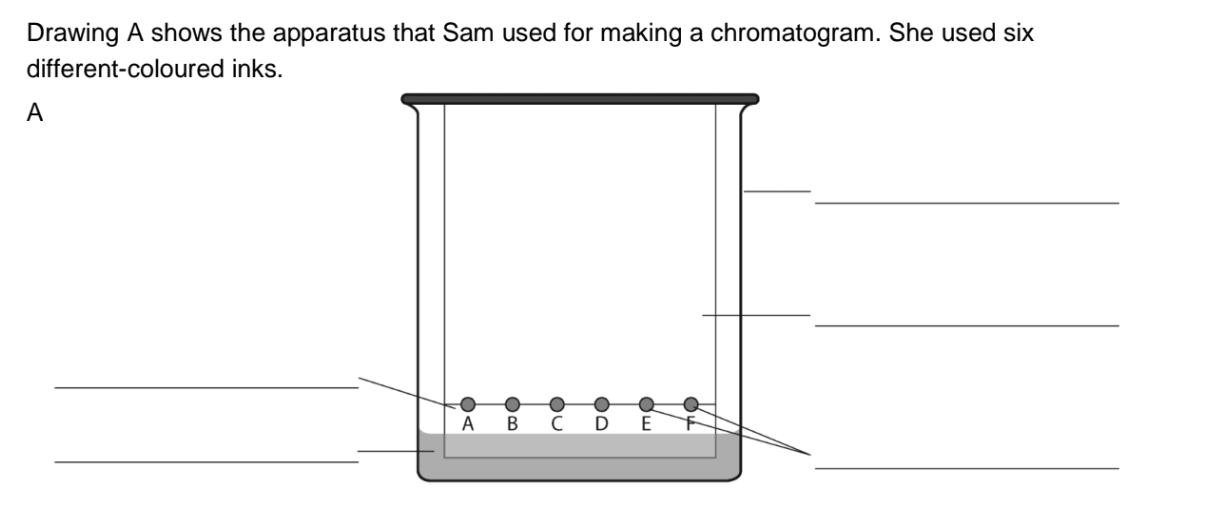

Match the labels
Mmuae Afoforo a Wobɛpaw:
Beaker
Samples
solvent
line in pencil
Chromatography paper
Match the labels
The bottom of paper must be
The pencil line must be
A
B
C
X
one dot only
two or more dots
Pure sample
Mixture
Sample
A
B
C
D

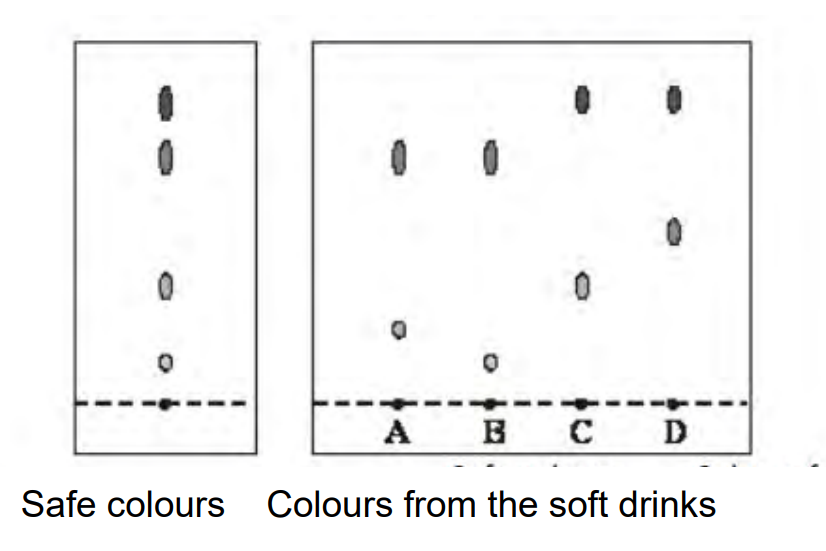

Safe to drink
Not safe to drink
Select the correct option.
Note - the more soluble a dye is the further the dot will move.
Note - the more soluble the dye the larger the Rf value will be.
Note - the Rf value can not be more than 1.
Rf =
Rf =
Note - the soluble a dye is the further the dot will move.
Note - the more soluble the dye the the Rf value will be.
Note - the Rf value can not be more than .

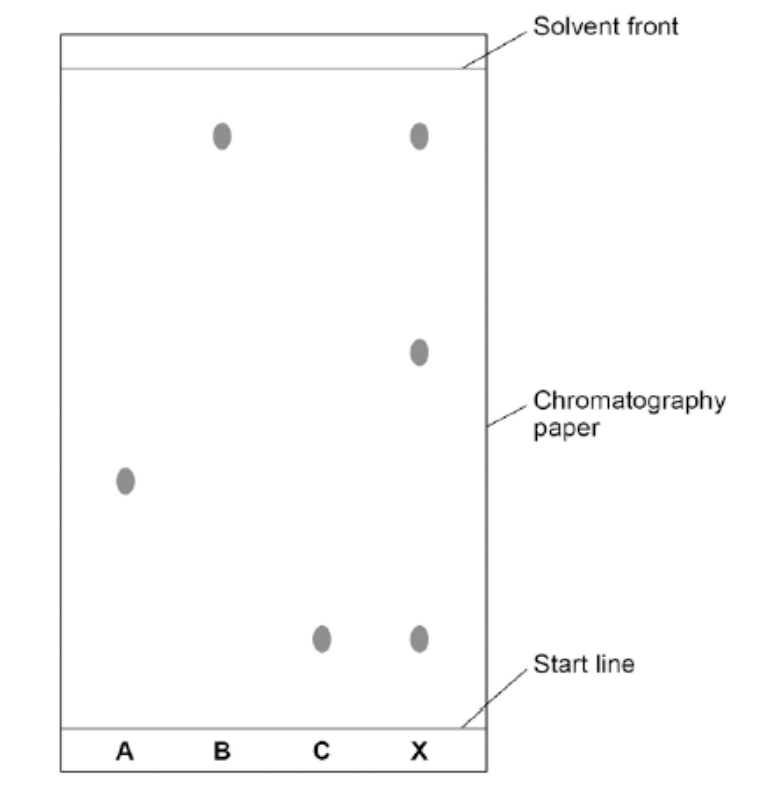

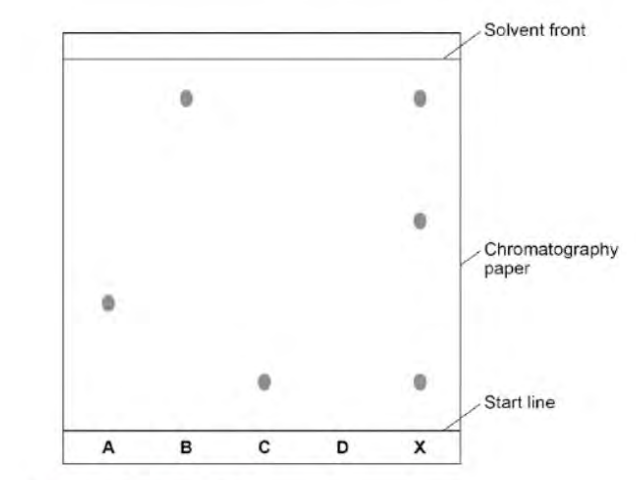

How many dyes are there is A
How many dyes are there in B
How many dyes are there in D
How many dyes are there in X
Which dye is not found in sample X

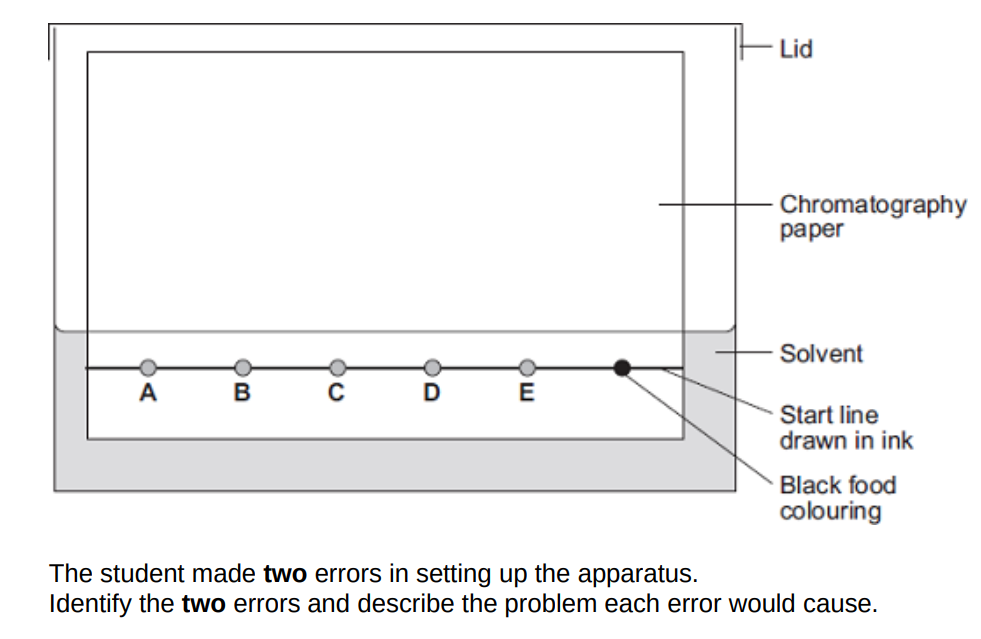

Start line not drawn in so line will
Samples are in the so the samples will in the water instead of moving up the .
Sample B did not move as sample is soluble in the solvent used.
To fix this we would use a solvent, for example alcohol or propanol in which sample B soluble
