NYS Regents Physics Sample Cluster 1 (Bungee Jumping)

Base your answers to questions 1 through 5 on the information below and on your knowledge of physics.

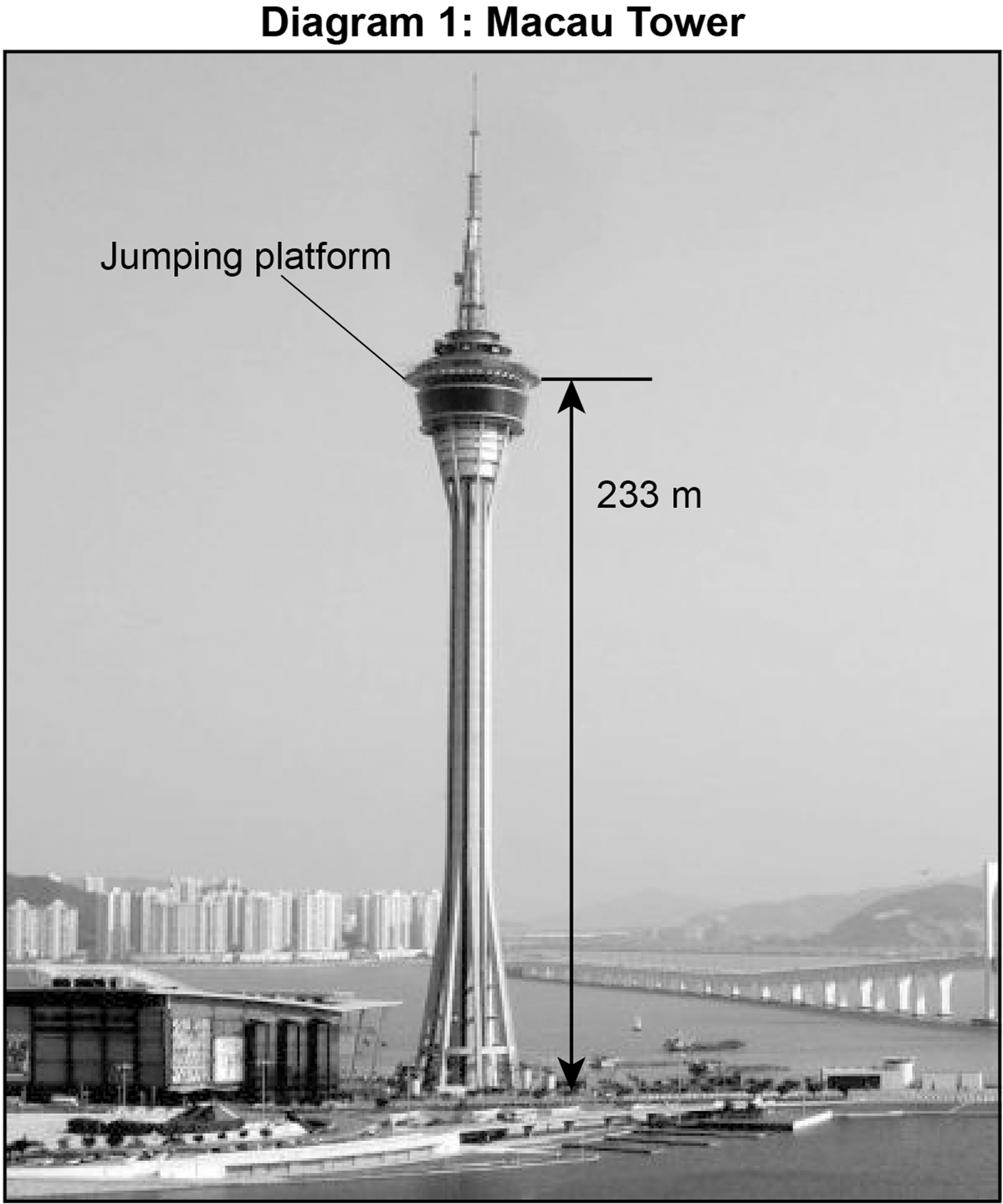

Bungee Jumping One of the highest commercial bungee jumps in the world is located at the Macau Tower, near Hong Kong, as shown in Diagram 1. The jumping platform is 233 meters above the ground.

Diagram showing the Macau Tower, including a labeled jumping platform and a height measurement of 233 meters to the base.

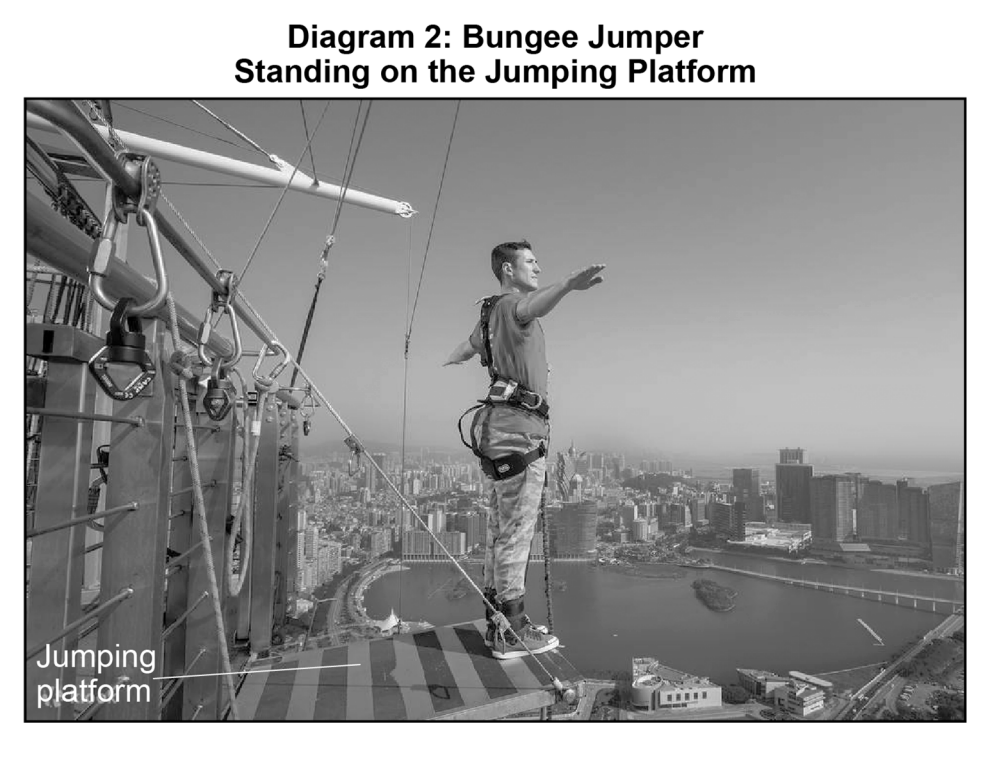

Bungee jumpers at the Macau Tower ride an elevator from the ground floor to the jumping platform, as shown in Diagram 2.

null

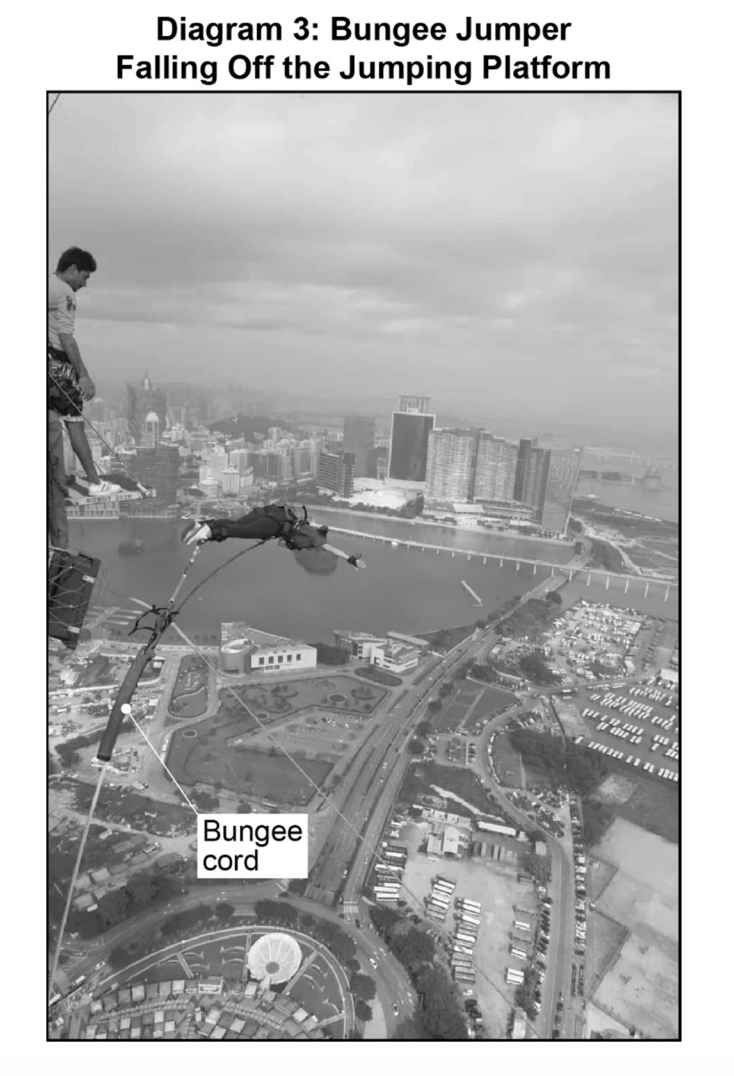

Bungee jumpers fall off the jumping platform, as shown in Diagram 3. The length of the unstretched bungee cord used at the Macau Tower is 50. meters.

null null

Ɛhia

1

A 60-kilogram bungee jumper rode the elevator from the ground floor to the jumping platform. Based upon a mathematical model, what was the approximate change in gravitational potential energy of the Earth-jumper system?

590 $J$

1400 $J$

14,000 $J$

140,000 $J$

HS-PS3-1

2

In the choices below, $F_N$
represents the normal force exerted by the platform on the jumper. Which vector diagram correctly models the force(s) acting on the bungee jumper that allow(s) the bungee jumper to be at rest on the platform?

null

HS-PS2-1

1

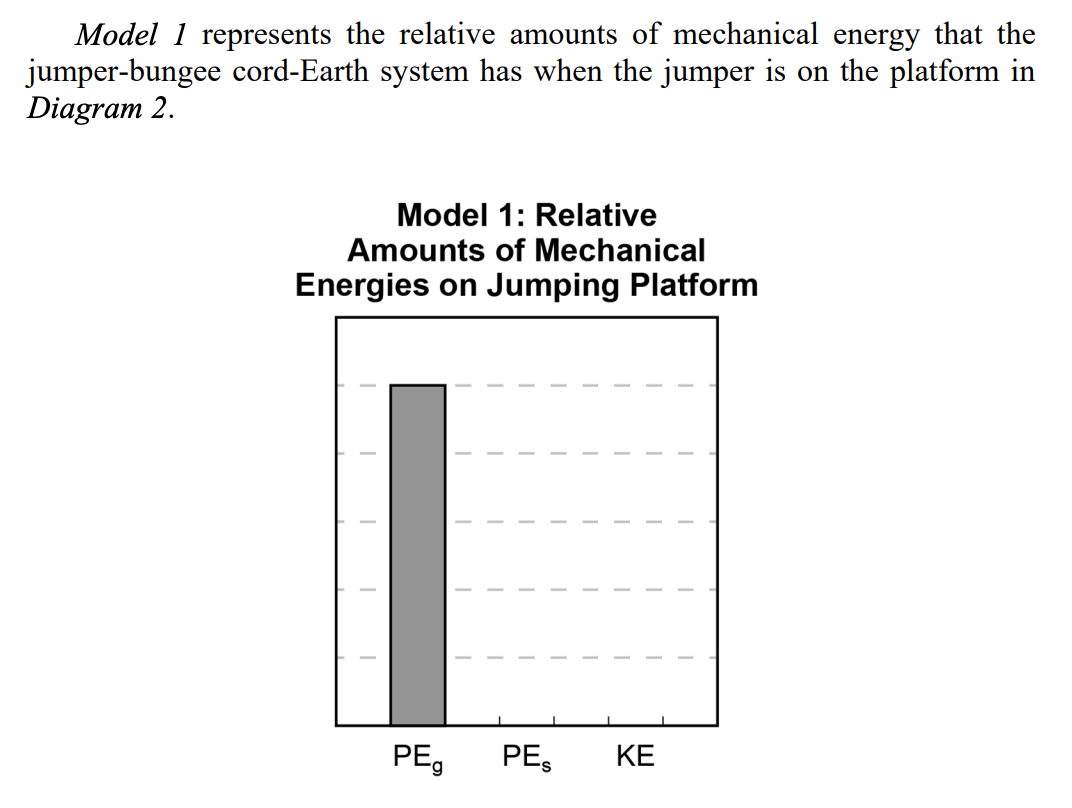

Assuming no mechanical energy is lost, complete the model below to show the relative amounts of mechanical energies of the jumper-bungee cord-Earth system when the jumper has fallen $46.6$ meters below the jumping platform. [1]

HS-PS3-2

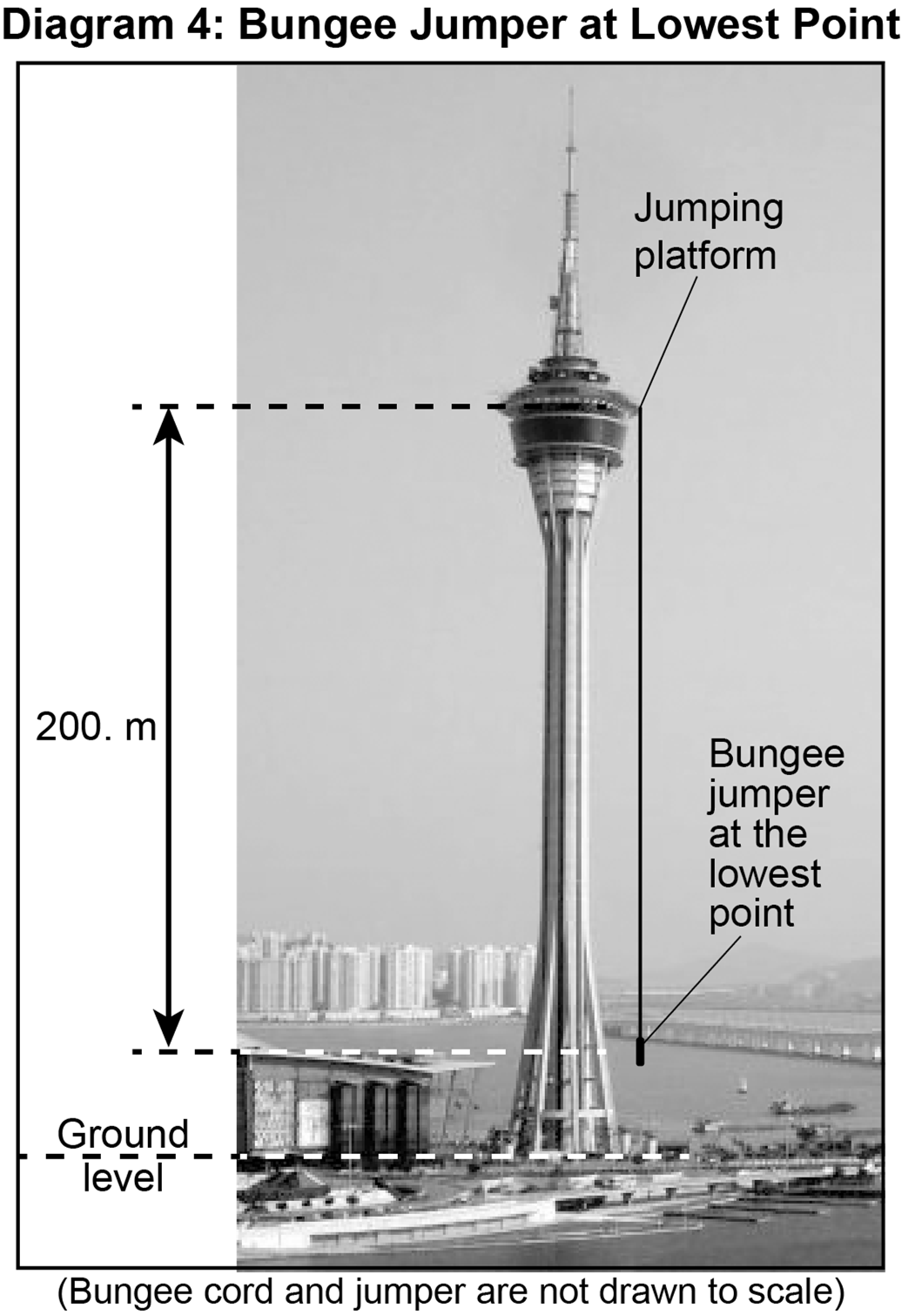

The 60-kilogram bungee jumper falls meters to their lowest point, coming momentarily to rest, as shown in Diagram 4.

Diagram of a bungee jumper at the lowest point of a jump from a tower, illustrating a 200-meter distance from the jumping platform to the ground level.

(Bungee cord and jumper are not drawn to scale)

1

Assuming no mechanical energy is removed from the jumper-bungee cord-Earth system during the fall, develop a mathematical model that could be used to represent the energy transformation starting at the jumping platform and ending at the lowest point. [1]

HS-PS3-1

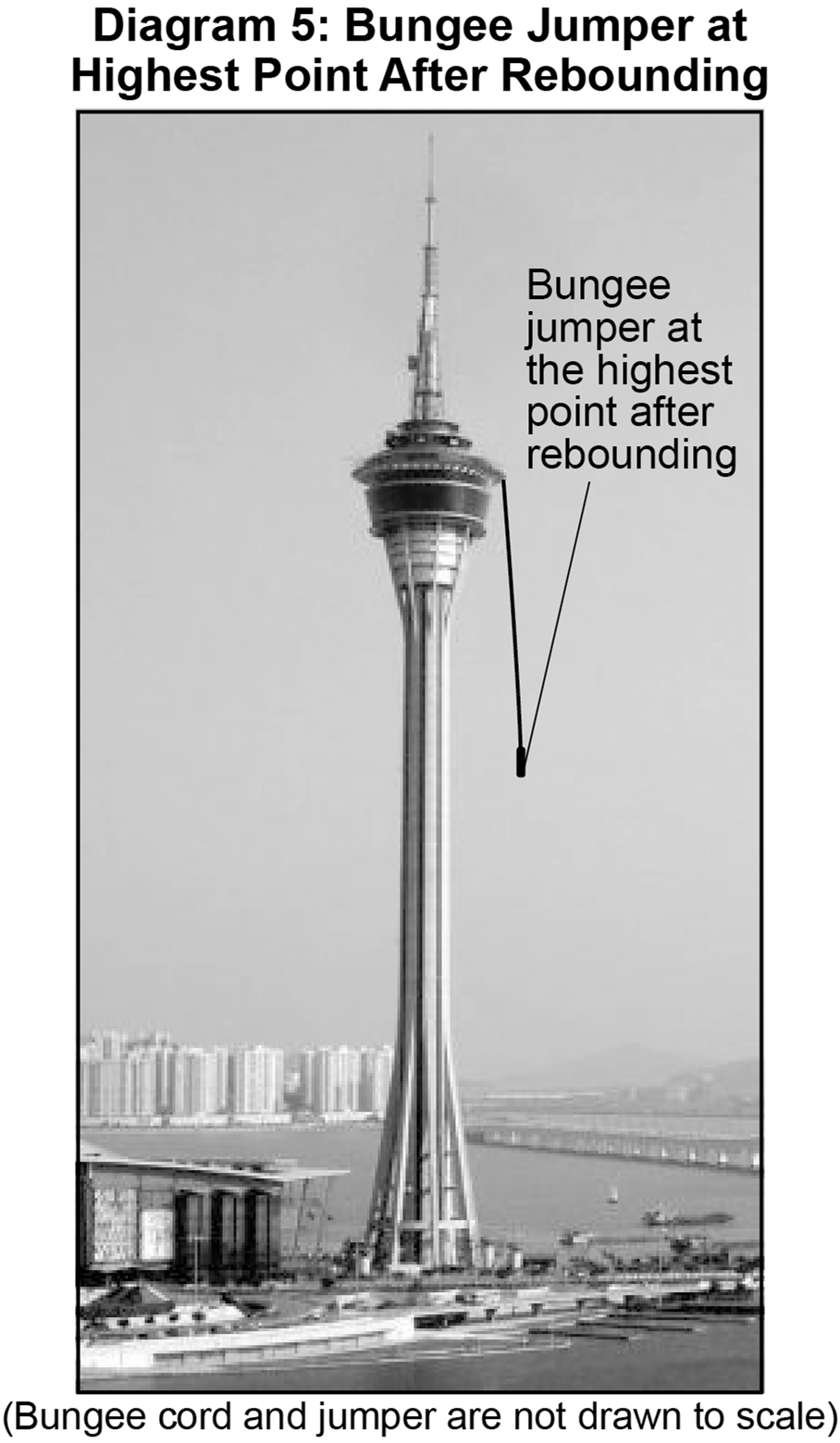

The bungee jumper rebounded upward after momentarily coming to rest at the lowest point. The bungee jumper did not return to the height of the jumping platform after rebounding, as shown in Diagram 5.

Diagram of a bungee jumper at the highest point after rebounding from a tall tower.

1

Considering the jumper-bungee cord-Earth system, which statement correctly describes why the jumper does not return to the initial height of the platform after rebounding?

Air resistance causes an increase in the mechanical energy of the system.

Air resistance causes a decrease in the mechanical energy of the system.

The gravitational force acting on the jumper causes a decrease in the mechanical energy of the system.

The gravitational force acting on the jumper causes an increase in the mechanical energy of the system.

HS-PS3-2
