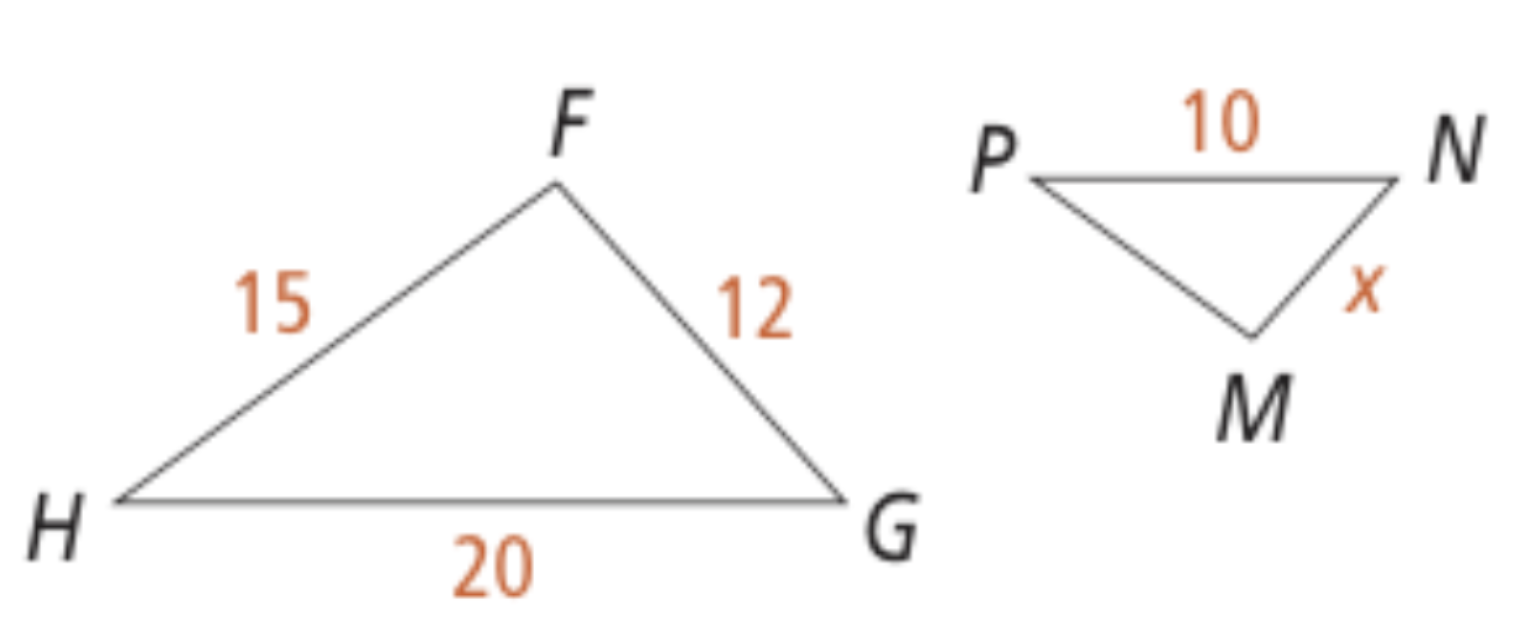

Solve for x.

Solve for x.

Solve for x.

Solve for x.

Key Objectives:
Define similar polygons. Identify the attributes of similar polygons. Identify whether two polygons are similar
Write a similarity statement
Find missing angle measures of similar polygons

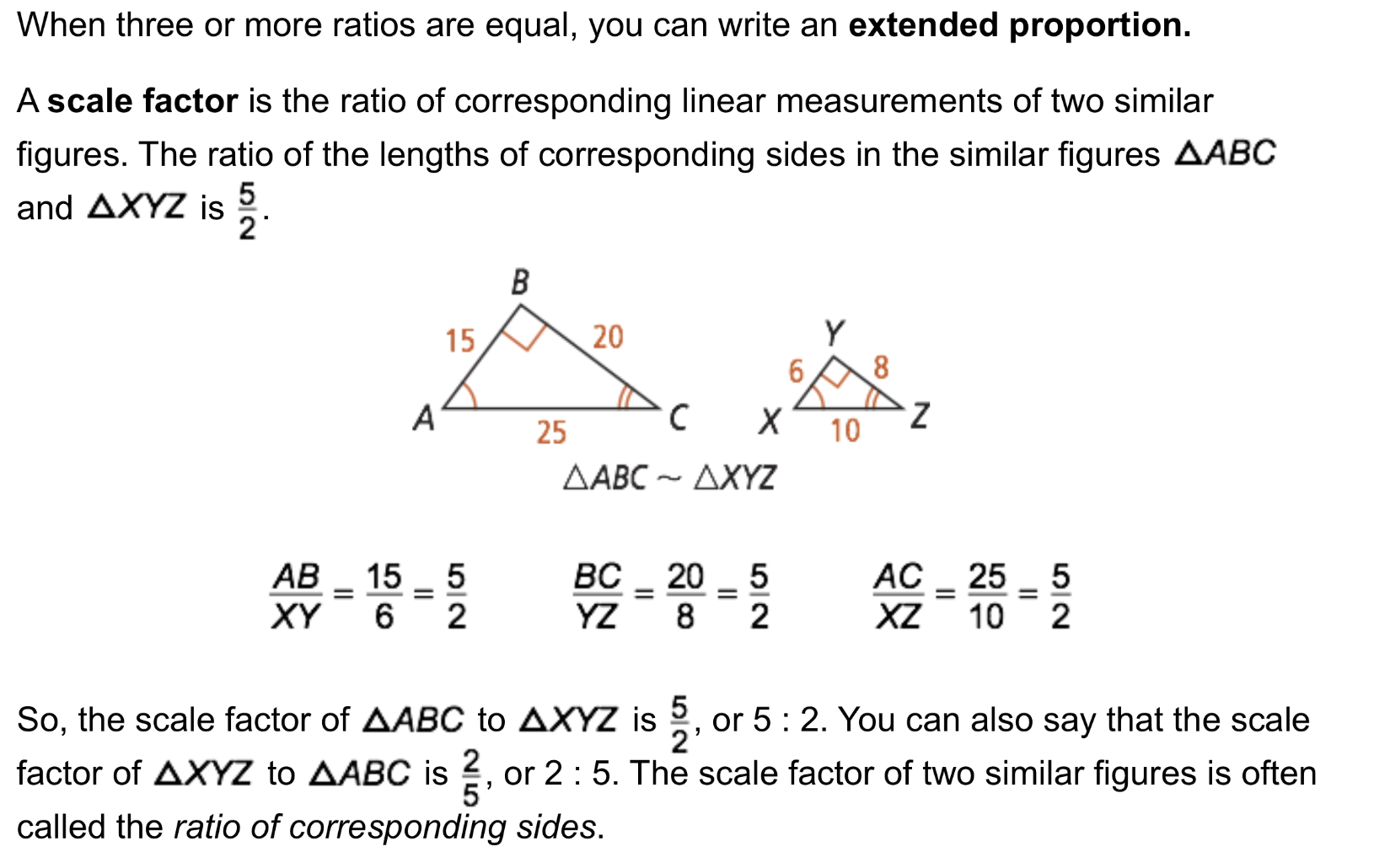

Determine the scale factor (ratio of corresponding sides / ratio of similitude) between two similar polygons
Use scale factor to find missing side lengths (angle bisectors/medians/altitudes) and perimeter of similar polygons

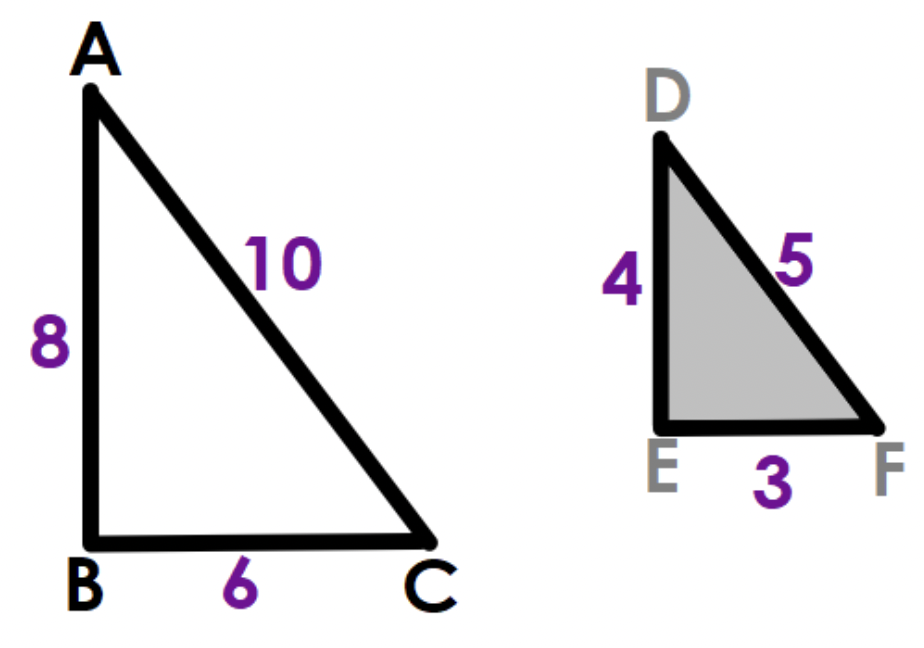

How are the two triangles the SAME?
How are the two triangles DIFFERENT?

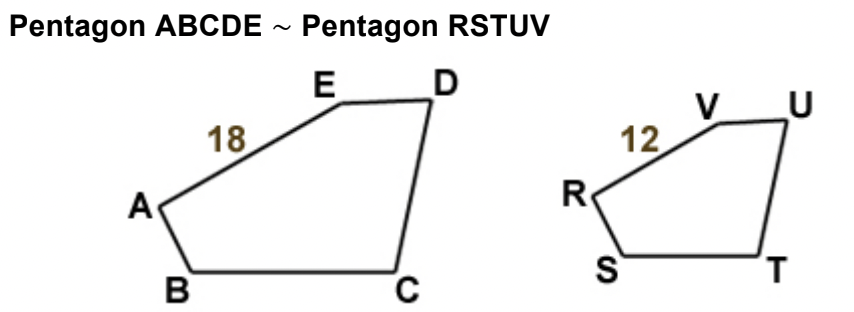

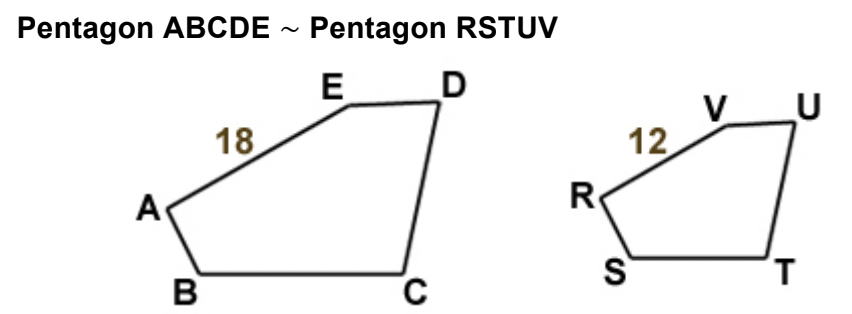

What is the scale factor of Pentagon ABCDE to Pentagon RSTUV?
If BC = 15, find ST. (Write the proportion in the show your work area)

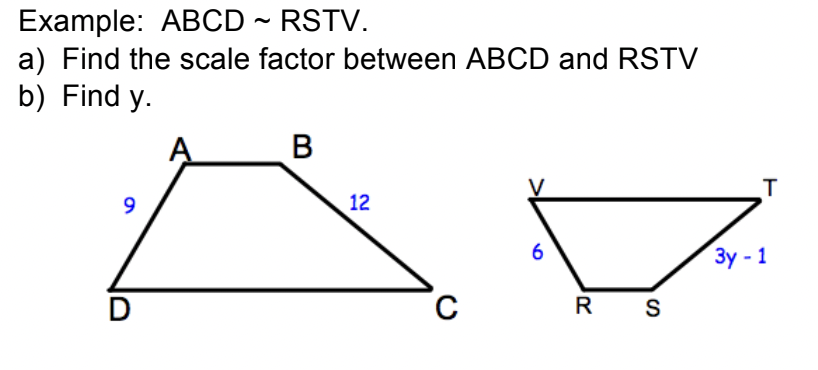

Find the scale factor between ABCD and RSTV?
Find y.
In similar pentagons ABCDE and RSTUV, the perimeter of ABCDE is 60 inches. Find the perimeter of RSTUV.

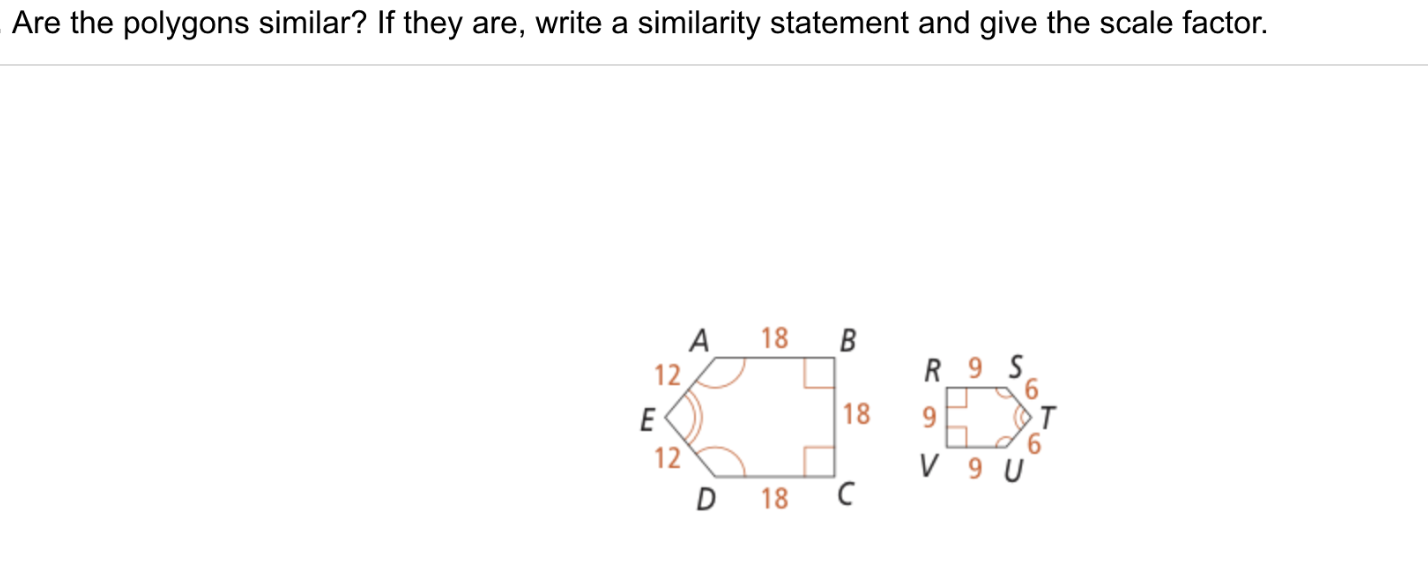

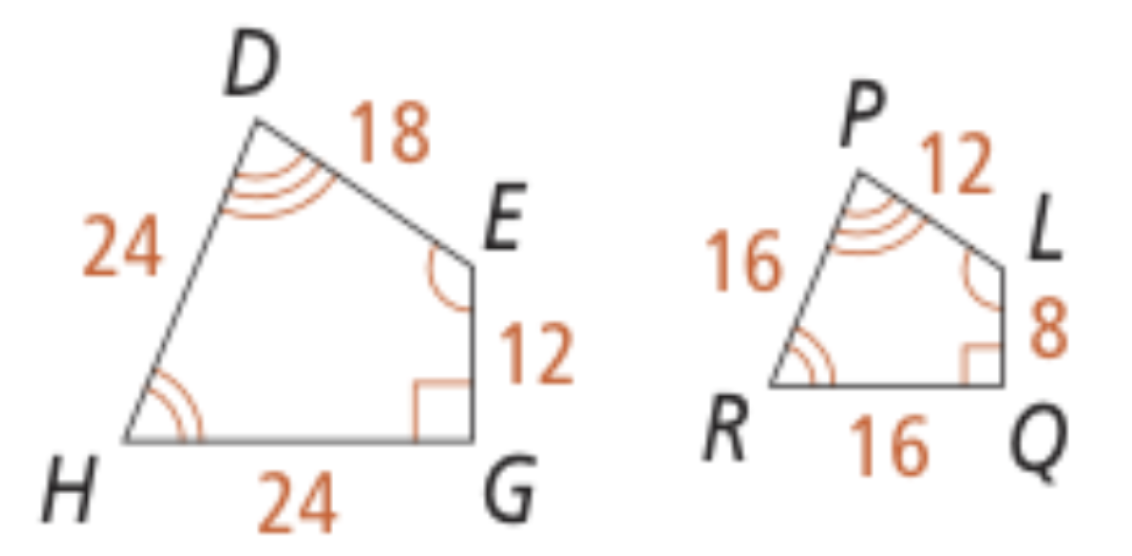

Are the polygons similar? If they are, write a similarity statement and give the scale factor.

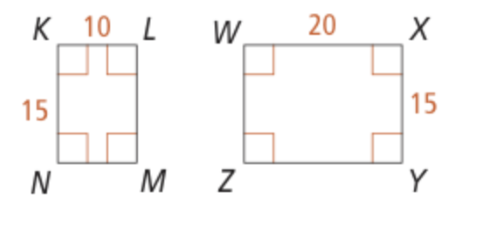

Are the polygons similar? If they are, write a similarity statement and give the scale factor.

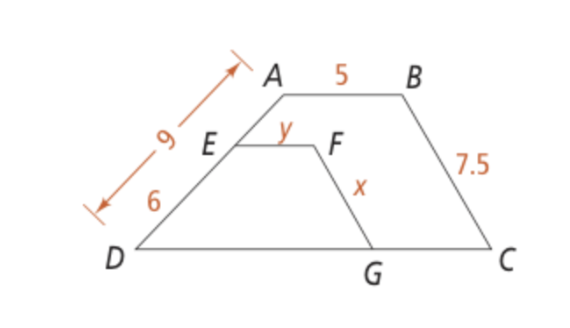

If ABCD
EFGD, find the value of y.Are the polygons similar? If they are, write the similarity statement and give the scale factor.

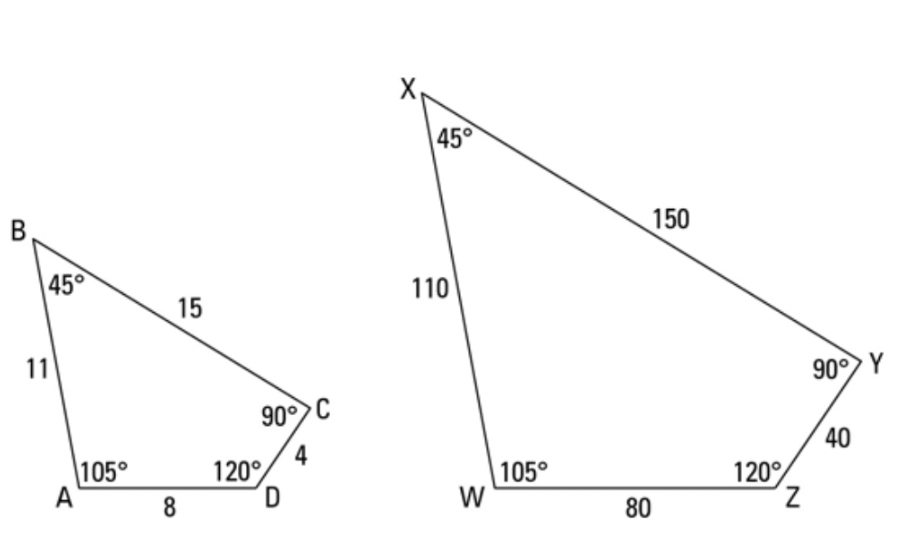

If Quadrilateral ABCD
Quadrilateral WXYZ , then what is the scale factor between the two similar polygons?
