Atmospheric Concentrations of Greenhouse Gases - MS-ESS - Weather and Climate

star
star
star
star
star
Posljednje ažuriranje 4 months ago
18
Napomena autora:

Directions: Use the information provided and your knowledge of Earth and Space Sciences to answer the following questions. Show all work where necessary.

Directions: Use the information provided and your knowledge of Earth and Space Sciences to answer the following questions. Show all work where necessary.

Obavezno
4
DOK 2
MS-ESS3-5
Obavezno
4
DOK 2
MS-ESS3-4
Obavezno
6
Pitanje 3
3.

Nitrous oxide levels rarely exceeded 280 ppb over the last 800,000 years but have reached 336 ppb in 2022. Explain the human activity primarily responsible for this increase and why this trend is significant.

DOK 3
MS-ESS3-4
Obavezno
4
DOK 2
MS-ESS3-3

Background

Since the Industrial Revolution began in the 1700s, people have added a substantial amount of greenhouse gases into the atmosphere by burning fossil fuels, cutting down forests, and conducting other activities. When greenhouse gases are emitted into the atmosphere, many remain there for long time periods ranging from a decade to many millennia. Over time, these gases are removed from the atmosphere by chemical reactions or by emissions sinks, such as the oceans and vegetation, which absorb greenhouse gases from the atmosphere. As a result of human activities, however, these gases are entering the atmosphere more quickly than they are being removed from it, and thus their concentrations are increasing.

Carbon dioxide, methane, nitrous oxide, and certain manufactured gases called halogenated gases (gases that contain chlorine, fluorine, or bromine) become well mixed throughout the global atmosphere because of their relatively long lifetimes and because of transport by winds. Concentrations of these greenhouse gases are measured in parts per million (ppm), parts per billion (ppb), or parts per trillion (ppt) by volume. In other words, a concentration of 1 ppb for a given gas means there is one molecule of that gas in every 1 billion molecules of air. Some halogenated gases are considered major greenhouse gases due to their very high global warming potentials and long atmospheric lifetimes even if they only exist at a few ppt (see table).

Obavezno
4
DOK 2
MS-ESS3-5
Obavezno
4
DOK 2
MS-ESS3-5
Obavezno
6
DOK 3
MS-ESS3-5

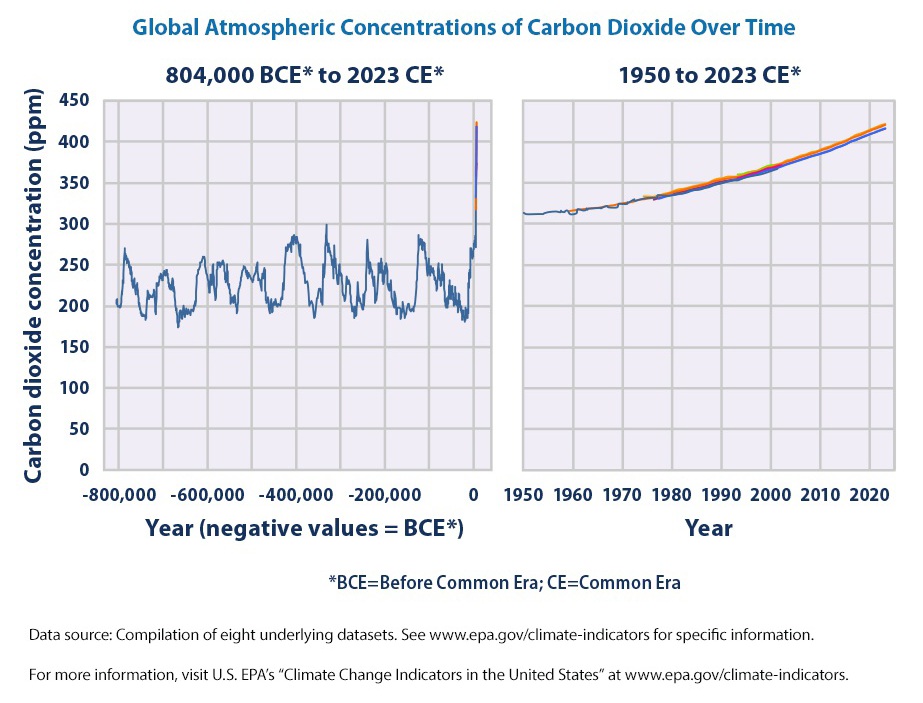

Graph of Information - Figure 1.

This figure shows concentrations of carbon dioxide in the atmosphere from hundreds of thousands of years ago through 2023, measured in parts per million (ppm). The data come from a variety of historical ice core studies and recent air monitoring sites around the world. Each line represents a different data source.

Obavezno
4
Pitanje 8
8.

What does the CO2 level trend show from 1950 to 2023?

DOK 2
MS-ESS3-5
Obavezno
6
DOK 3
MS-ESS3-5

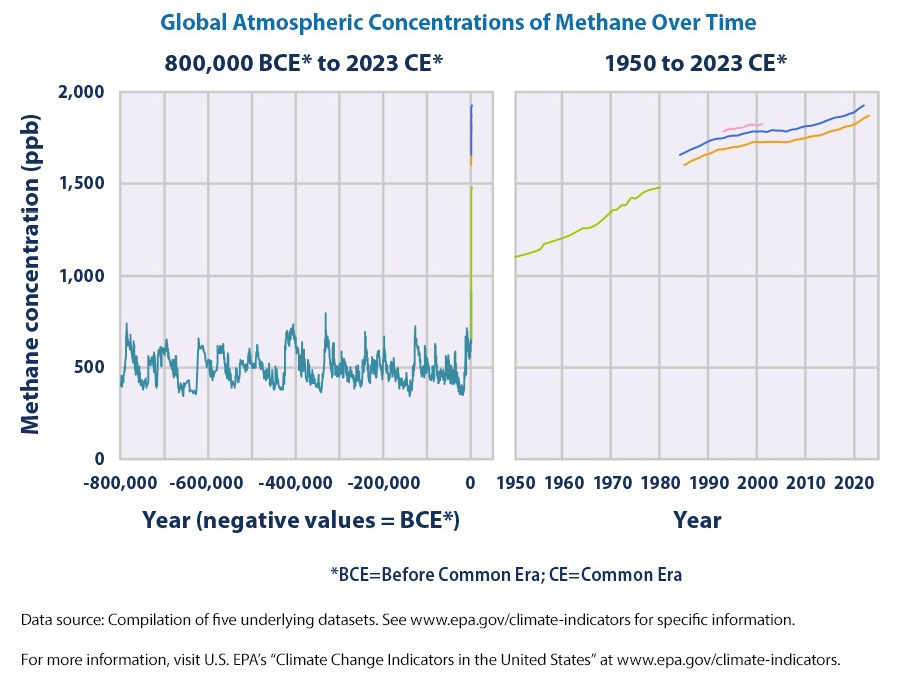

Graph of Information - Figure 2.

This figure shows concentrations of methane in the atmosphere from hundreds of thousands of years ago through 2023, measured in parts per billion (ppb). The data come from a variety of historical ice core studies and recent air monitoring sites around the world. Each line represents a different data source.

Obavezno
4
Pitanje 10
10.

What pattern in methane levels can be identified since 1950?

DOK 2
MS-ESS3-5
Obavezno
8
DOK 4
MS-ESS3-5

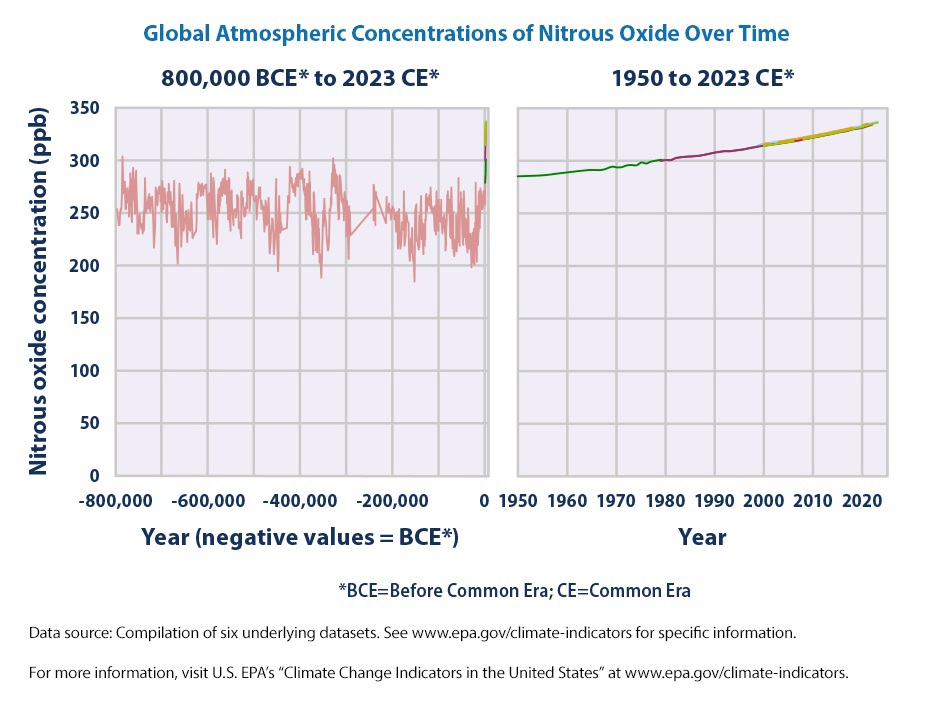

Graph of Information - Figure 3.

This figure shows concentrations of nitrous oxide in the atmosphere from hundreds of thousands of years ago through 2023, measured in parts per billion (ppb). The data come from a variety of historical ice core studies and recent air monitoring sites around the world. Each line represents a different data source

Obavezno
4
Pitanje 12
12.

What pattern is observed in nitrous oxide levels post-1950?

DOK 2
MS-ESS3-5
Obavezno
6
DOK 3
MS-ESS3-5

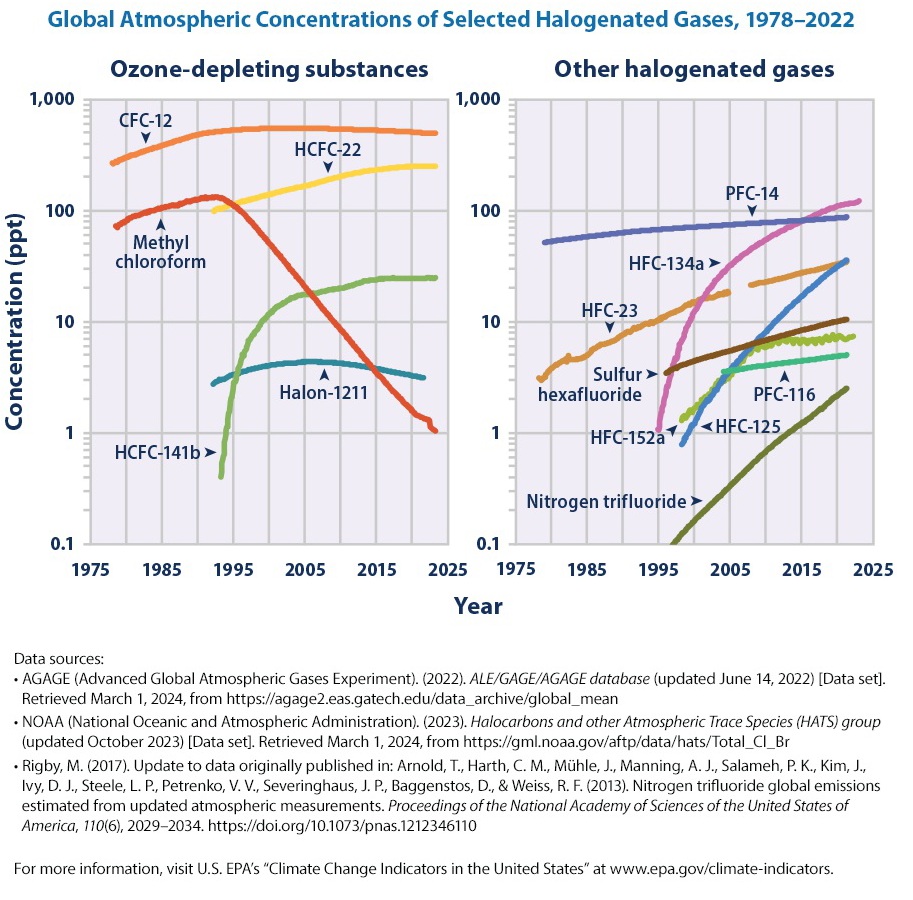

Graph of Information - Figure 4.

This figure shows concentrations of several halogenated gases (which contain fluorine,

chlorine, or bromine) in the atmosphere, measured in parts per trillion (ppt). The data come

from monitoring sites around the world. Note that the scale increases by factors of 10. This is

because the concentrations of different halogenated gases can vary by a few orders of magnitude. The numbers following the name of each gas (e.g., HCFC-22) are used to denote specific types of those particular gases.

Obavezno
4
Pitanje 14
14.

How did the levels of ozone-depleting substances change from 1978 to 2022?

DOK 2
MS-ESS3-5
Obavezno
6
DOK 3
MS-ESS3-5

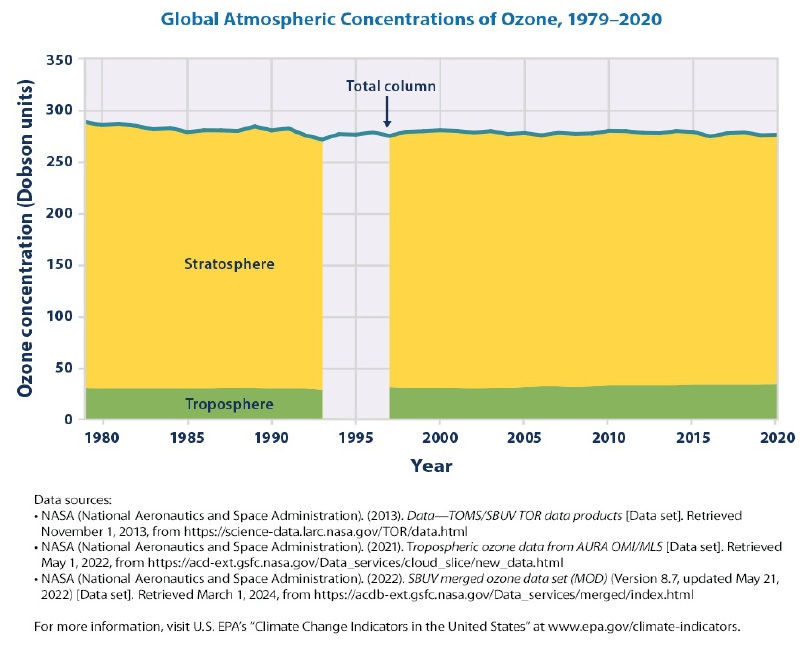

Graph of Information - Figure 5.

This figure shows the average amount of ozone in the Earth’s atmosphere each year, based on

satellite measurements. The total represents the “thickness” or density of ozone throughout all

layers of the Earth’s atmosphere, which is called total column ozone and measured in Dobson

units. Higher numbers indicate more ozone. For most years, Figure 5 shows how this ozone is

divided between the troposphere (the part of the atmosphere closest to the ground) and the

stratosphere. From 1994 to 1996, only the total is available, due to limited satellite coverage.

Obavezno
4
DOK 2
MS-ESS3-4
Obavezno
4
DOK 2
MS-ESS3-5
Obavezno
8
Pitanje 18
18.

Describe the overall pattern in global ozone concentrations between 1979 and 2020. What human actions influenced this trend, and what role does international cooperation play?

DOK 4
MS-ESS3-3

Atmospheric Concentrations of Greenhouse Gases

Key Points

Global atmospheric concentrations of carbon dioxide, methane, nitrous oxide, and certain manufactured greenhouse gases have all risen significantly over the last few hundred years (see Figures 1, 2, 3, and 4).

Historical measurements show that the current global atmospheric concentrations of carbon dioxide, methane, and nitrous oxide are unprecedented compared with the past 800,000 years (see Figures 1, 2, and 3).

Carbon dioxide concentrations have increased substantially since the beginning of the industrial era, rising from an annual average of 280 ppm in the late 1700s to 419 ppm in 2023 (average of five sites in Figure 1) - a 49 percent increase. Almost all of this increase is due to human activities.

The concentration of methane in the atmosphere has more than doubled since preindustrial times, reaching over 1,800 ppb in recent years (see the range of measurements for 2020 through 2023 in Figure 2). This increase is predominantly due to agriculture and fossil fuel use.

Over the past 800,000 years, concentrations of nitrous oxide in the atmosphere rarely exceeded 280 ppb. Levels have risen since the 1920s, however, reaching a new high of 336 ppb in 2022 (average of four sites in Figure 3). This increase is primarily due to agriculture.

Concentrations of many of the halogenated gases shown in Figure 4 were essentially zero a few decades ago but have increased rapidly as they have been incorporated into industrial products and processes. Some of these chemicals have been or are currently being phased out of use because they are ozone-depleting substances, meaning they also cause harm to the Earth’s protective ozone layer. As a result, concentrations of many major ozone-depleting gases have begun to stabilize or decline (see Figure 4, left panel). Concentrations of other halogenated gases have continued to rise, however, especially where the gases have emerged as substitutes for ozone-depleting chemicals (see Figure 4, right panel).

Overall, the total amount of ozone in the atmosphere decreased by about 4 percent between 1979 and 2020 (see Figure 5). All of the decrease happened in the stratosphere, with most of the decrease occurring between 1979 and 1994. Changes in stratospheric ozone reflect the effect of ozone-depleting substances. These chemicals have been released into the air for many years, but recently, international efforts have reduced emissions and phased out their use.

Globally, the amount of ozone in the troposphere increased by about 12 percent between 1979 and 2020 (see Figure 5).

Pitanje 1
1.

Which greenhouse gas has increased from an average of 280 ppm in the late 1700s to 419 ppm in 2023, representing a 49% increase?

Pitanje 2
2.

Which factor is primarily responsible for the doubling of methane concentrations since preindustrial times?

Pitanje 4
4.

Why have concentrations of many ozone-depleting halogenated gases begun to stabilize or decline since the 1990s?

Pitanje 5
5.

Which activities have led to increased greenhouse gases since the 1700s?

Pitanje 6
6.

How long do greenhouse gases typically stay in the atmosphere?

Pitanje 7
7.

How do oceans and vegetation interact with greenhouse gases?

Pitanje 9
9.

Describe the pattern of carbon dioxide concentrations:

a) From 800,000 BCE to 2023 CE

b) From 1950 to 2023 CE

Pitanje 11
11.

Compare the methane concentration increase from 1950 to 2023 with the earlier periods shown. What implications does this have for future climate policies?

Pitanje 13
13.

How do nitrous oxide levels from 800,000 BCE to 2023 CE differ from those after 1950 CE?

Pitanje 15
15.

Which gas showed a significant decrease in atmospheric concentration by 2022?

Pitanje 16
16.

What trend in atmospheric ozone does the graph reveal?

Pitanje 17
17.

In which atmospheric layer is ozone concentration significantly higher?
