Vocabulary

Simulation

Copy of 2.) Simulation - Waves on a String (5/28/2026)

Last updated about 1 month ago

14 Nsɛmmisa

Vocabulary

Use the following links to define:

Amplitude - https://flexbooks.ck12.org/cbook/ck-12-middle-school-physical-science-flexbook-2.0/section/16.5/primary/lesson/wave-amplitude-ms-ps/
Transverse Wave - same link as above
Longitudinal Wave - same link as above
Wavelength - https://flexbooks.ck12.org/cbook/ck-12-middle-school-physical-science-flexbook-2.0/section/16.6/primary/lesson/wavelength-ms-ps/
Frequency - https://flexbooks.ck12.org/cbook/ck-12-middle-school-physical-science-flexbook-2.0/section/16.7/primary/lesson/wave-frequency-ms-ps/
Wave Speed - https://flexbooks.ck12.org/cbook/ck-12-middle-school-physical-science-flexbook-2.0/section/16.8/primary/lesson/wave-speed-ms-ps/

Place your definitions below.

Warning, if your definitions do not align with the information presented in the links, you will not receive any points for your answers.

Amplitude

Transverse Wave

Longitudinal Wave

Wavelength

Frequency

Wave Speed

Simulation

In the simulation below:

Turn on Oscillate.
Click, "No End".
Set the speed to "slow".

These three settings need to remain in each of the instructions below the simulation.

Without changing frequency, damping, and tension, increase and decrease the amplitude setting.
Describe what happens to the wave crest as you increase the amplitude setting.
Also describe what happens to the wave crest when you decrease amplitude.

Return the amplitude to 0.75 cm, do not alter the damping or the tension.
Describe what happens to the wave as you increase the frequency setting to 3.00 Hz.
Also describe what happens when you decrease this setting from 1.50 Hz to 0.75 Hz.

Set amplitude to its highest setting.
Set frequency to 0.25 Hz.
Set damping and tension to their lowest setting:
Ensure that oscillate and no end are selected and click "play".
Pause the simulation when the oscillating arm (the metal arm on the left) is at its highest point - make sure that at least two waves are visible.
Take a screenshot of the wave, click "Show your work," and paste the screenshot there.
While the simulation is still paused, click the "rulers" in the bottom-right.
Use the vertical ruler to measure the amplitude.
Using straight lines, or double-sided arrows, and labels - identify the amplitude (and it's measurement).
Use the horizontal ruler to measure the wavelength from one crest to the next crest.
Using straight lines, or double-sided arrows, and labels - identify the wavelength (and it's measurement) on the screenshot.

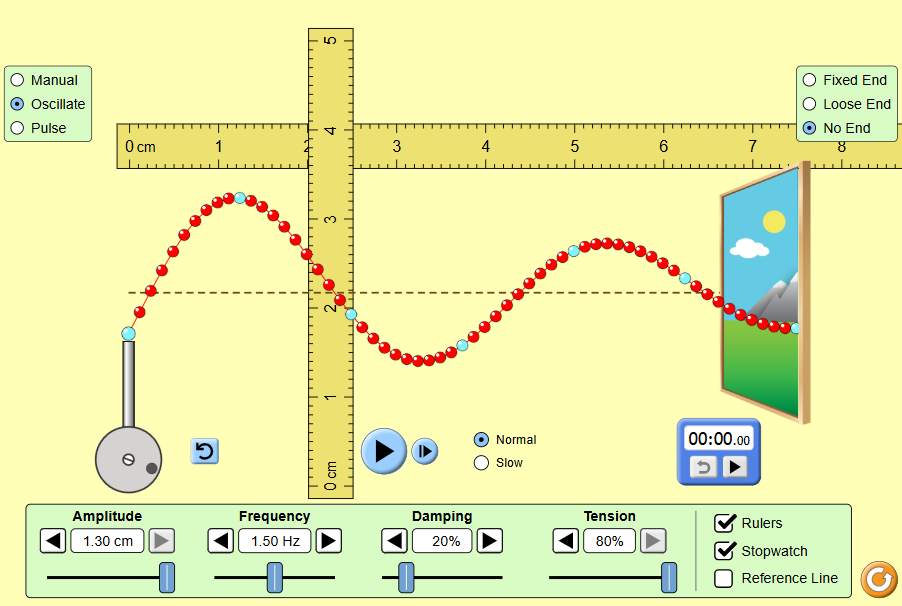

In the simulation below, do the following (your simulation should resemble the below image):

Select "Oscillate"
Select "No End"
Select "Rulers"
Select "Stopwatch"
Select "Normal"
Amplitude 1.30 cm
Frequency 1.50 Hz
Damping 20%
Tension 80%
Place the horizontal ruler so the 0 cm mark is lined-up with the arm of the oscillator (it moves up and down).
Place the vertical ruler 2 cm to the right of the oscillator.

null If you have done everything correct, your simulation will resemble the above image (the wave may look a little different, though).

I must grade this section.

After you have set-up the simulation, above, using the instructions posted above the simulation (there is an image to assist you, above)...

You will be counting the number of wave crests that pass by the vertical ruler in a 5 second period of time.

Click the start arrow on the timer (it will sync with the Play/Pause button that controls the simulation).
Click "Play" to start the simulation.
Count the wave crests that pass near the left-side of the vertical ruler in a 5 second period of time.
Repeat this five times.
Record the data (wave crests and time in seconds) in the data table, below.
After all data is collected, calculate the mean number of wave crests and time in seconds - record your mean time to the nearest hundredth and mean wave crests to the nearest 10th.

To reset the timer click the curved arrow button on the timer.

Time (sec)	Wave Crests

Mean Time

(sec)

Mean

Wave Crests

What wave property (other than wave crests) did you just measure?

In the above simulation, investigate how wave behavior is similar and different when the string is on a fixed and loose end point.
Don't be afraid to manipulate the settings.
Describe what you observe below.

Look back to your definitions in part 1.

What kind of wave did we observe in this simulation?

What kind of wave did we not observe in this simulation?

Comparing Wavelengths - Radio to Gamma null

In the above image, which type of wave has the second highest and second lowest frequency?

It might help you to determine which waves had the highest and lowest frequencies.

Second Highest

Second Lowest

Examine the wavelengths in the image above - determine which had the greatest and lowest wavelength.

Greatest wavelength

Lowest wavelength

Use your examination of frequency and wavelength to complete the following:

As wavelength increases, frequency ; as wavelength decreases, frequency .
