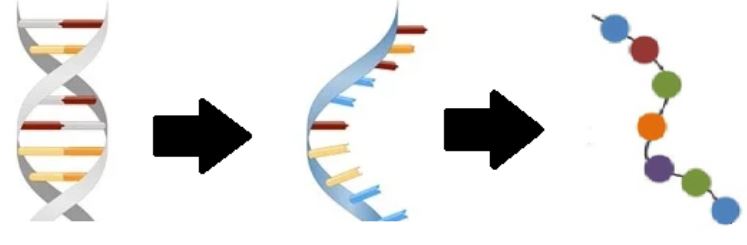

Which of the following is the correct sequence of steps in Protein Synthesis?
Which of the following is the correct sequence of steps in Protein Synthesis?
Which of the following is the correct sequence of steps in Protein Synthesis?

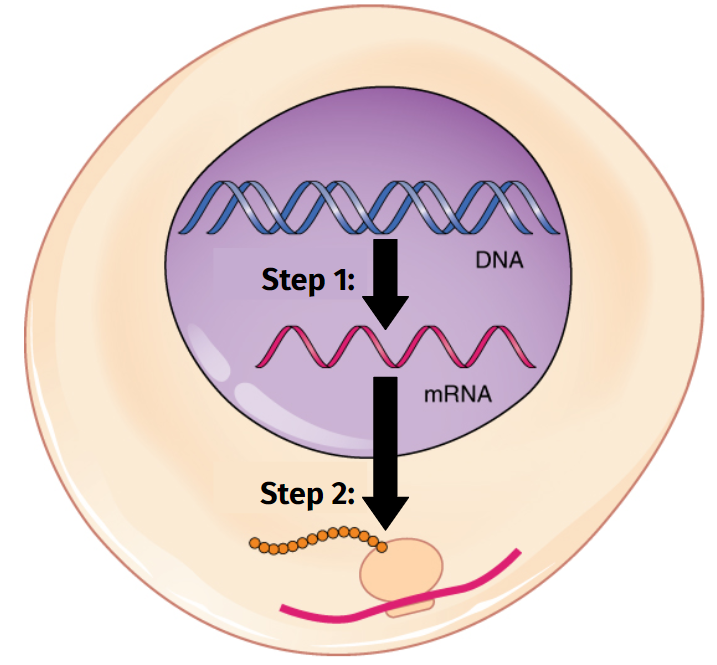

The diagram below shows a process that goes from DNA to mRNA to a Protein.
Label the diagram with the steps of protein synthesis.
Transcription
Translation
Cytokinesis
Mitosis
In the diagram, Step 1 represents in which a complementary mRNA copy is made from a DNA template. Step 2 represents the process of in which information from mRNA is used to form a polypeptide chain.
Match the type of RNA to its function (job).
| Draggable item | arrow_right_alt | Corresponding Item |
|---|---|---|
tRNA | arrow_right_alt | Takes messages from the DNA to the ribosome. |
rRNA | arrow_right_alt | Delivers amino acids to the ribosome. |
mRNA | arrow_right_alt | Stays in the ribosome and helps build the chain of amino acids. |

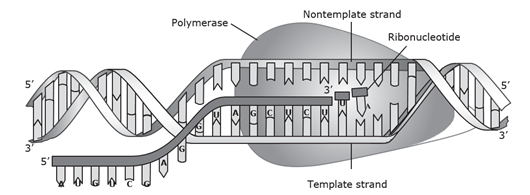

The process represented in the diagram below is and it occurs in the . The purpose of this process is to make a(n)copy of the DNA.

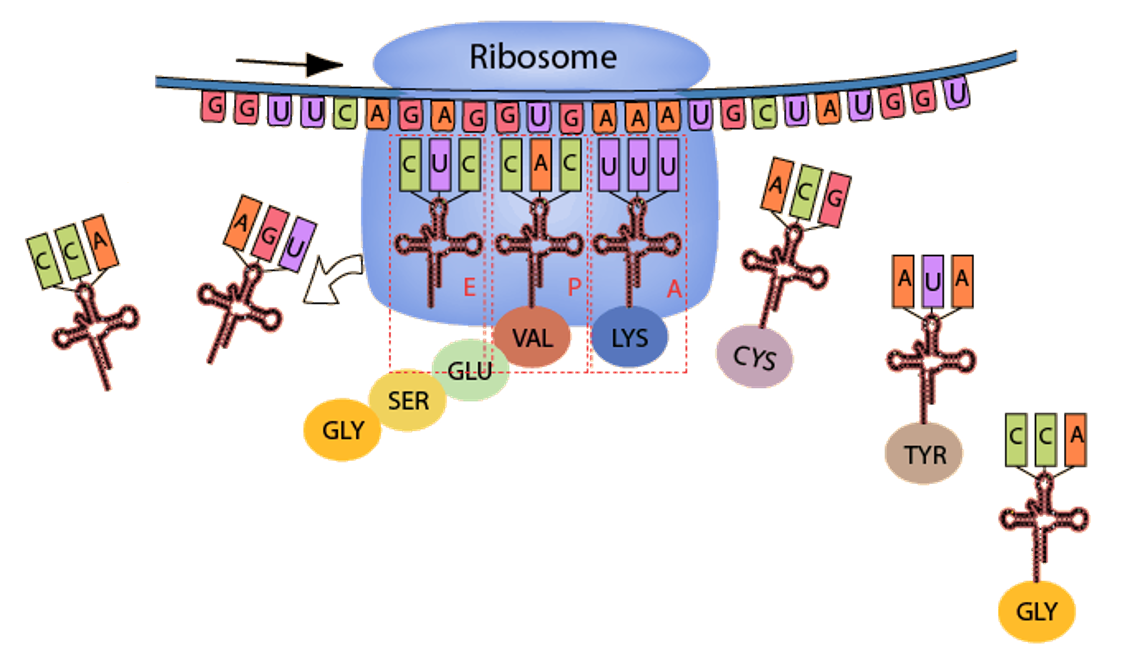

The process represented in the diagram is and it occurs in the . The purpose of this process is to .
An mRNA sequence is shown below.
What is the correct amino acid chain produced from the DNA template strand?

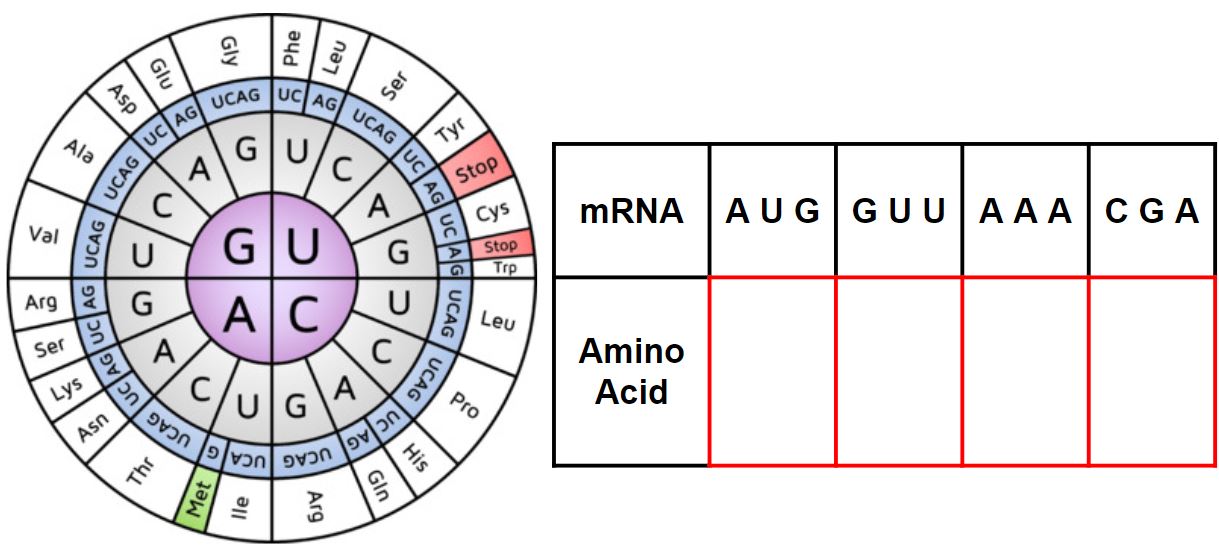

Use the codon chart to determine the amino acid sequence coded for by the mRNA sequence below.
Asn
Stop
Met
Arg
Ile
Val
Lys
