1

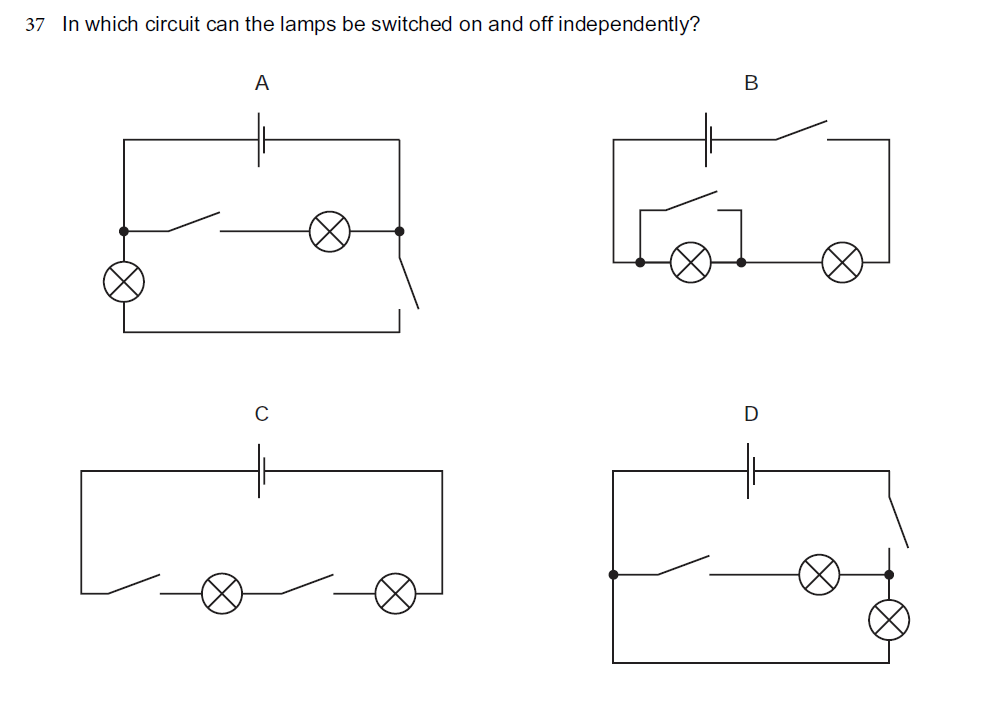

In which circuit can the lamps be switched on and off independently?

Circuit A

Circuit B

Circuit C

Circuit D

1

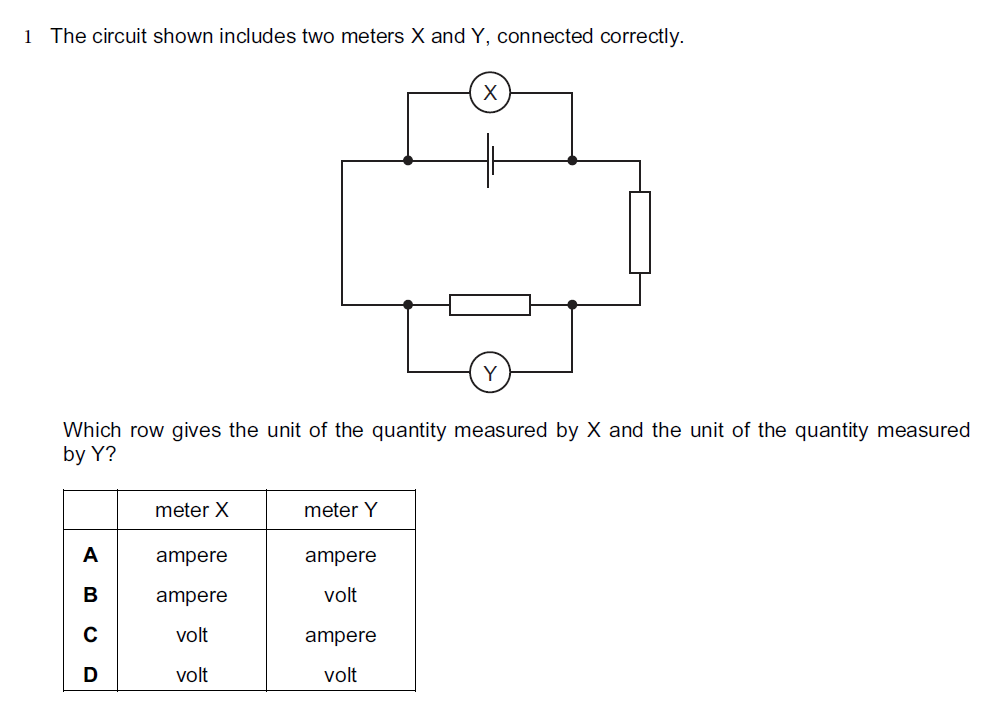

The circuit shown includes two meters X and Y, connected correctly.

A

B

C

D

1

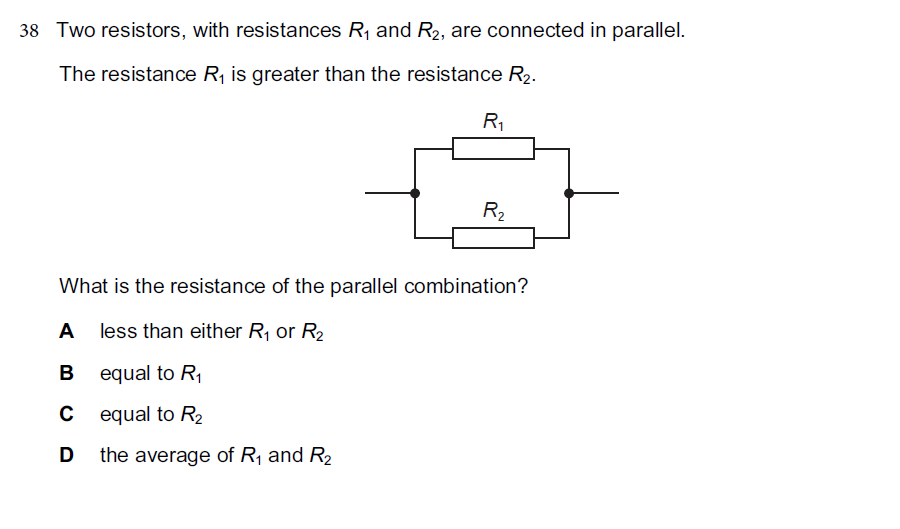

Two resistors, with resistances $R_1$ and $R_2$, are connected in parallel.
The resistance $R_1$ is greater than the resistance $R_2$.
What is the resistance of the parallel combination?

less than either $R_1$ or $R_2$

equal to $R_1$

equal to $R_2$

the average of $R_1$ and $R_2$

3.1.10

3.1.2.3

+2

1

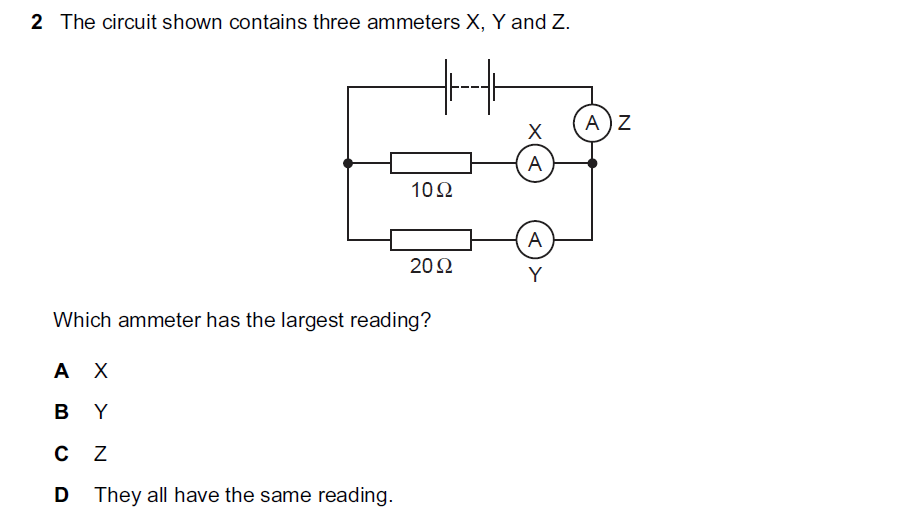

The circuit shown contains three ammeters X, Y and Z.
Which ammeter has the largest reading?

X

Y

Z

They all have the same reading.

3.1.3.3

3.1.3.4

C1.40

1

Two meters are connected in a circuit to measure the current in a component and the potential difference across the component.
Which meters are used and how are they connected to the component?

an ammeter in parallel for current, a voltmeter in series for potential difference

an ammeter in series for current, a voltmeter in parallel for potential difference

a voltmeter in parallel for current, an ammeter in series for potential difference

a voltmeter in series for current, an ammeter in parallel for potential difference

C3.23

C3.31

+2

2

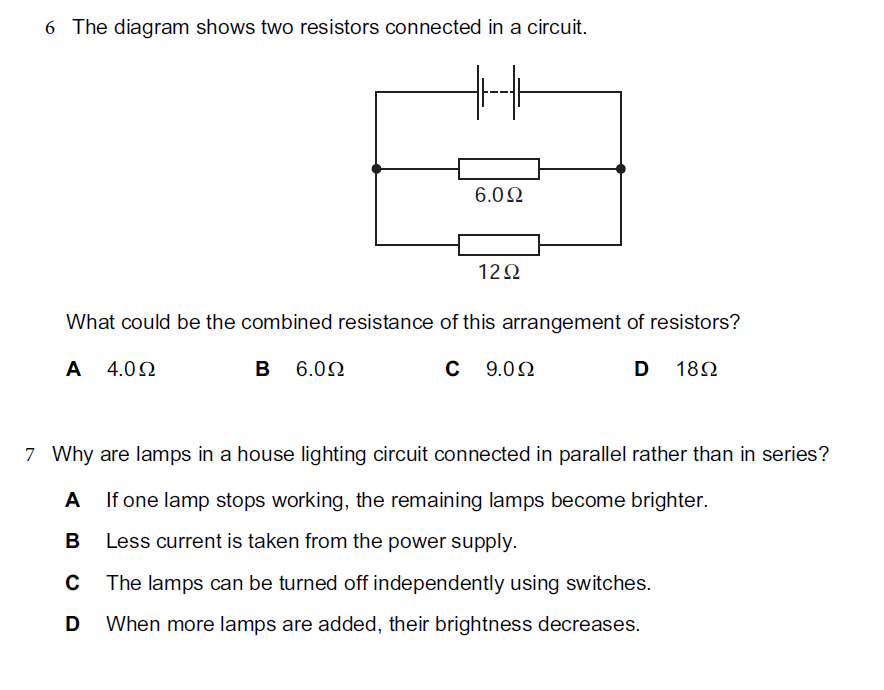

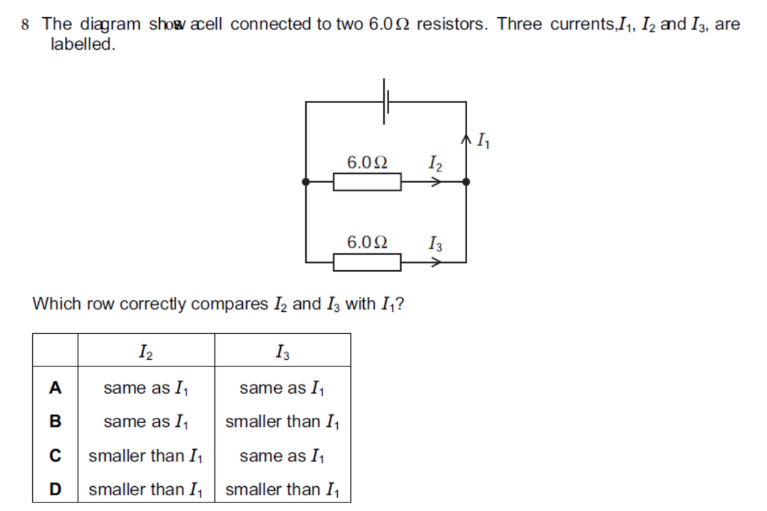

The diagram shows two resistors connected in a circuit.
Answer for question 6
What could be the combined resistance of this arrangement of resistors?

1

A

B

C

D

C5.25

1

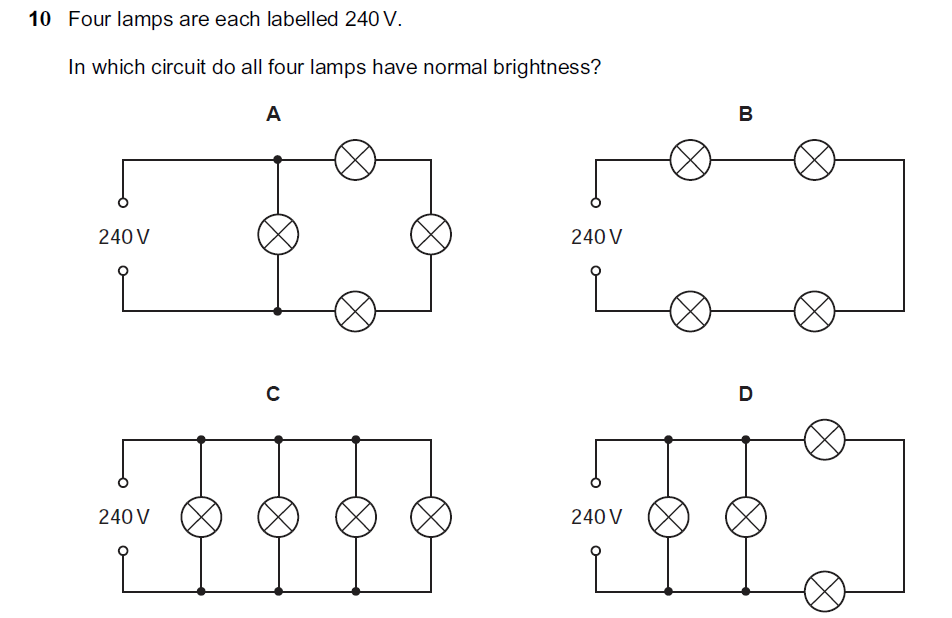

Four lamps are each labelled 240 V.
In which circuit do all four lamps have normal brightness?

Circuit A

Circuit B

Circuit C

Circuit D

3.1.3.3

C1.40

C5.25

1

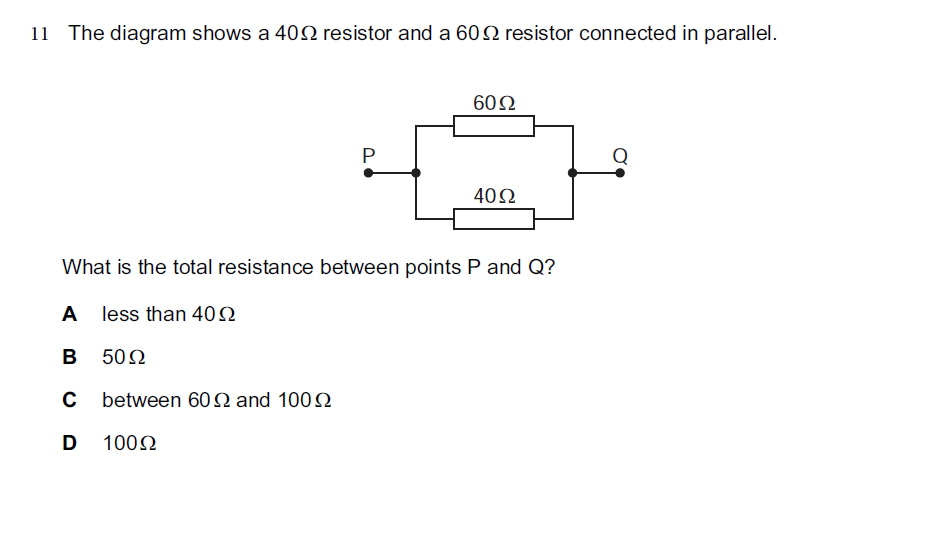

The diagram shows a $40\ \Omega$ resistor and a $60\ \Omega$ resistor connected in parallel.
What is the total resistance between points P and Q?

less than $40\ \Omega$

$50\ \Omega$

between $60\ \Omega$ and $100\ \Omega$

$100\ \Omega$

1

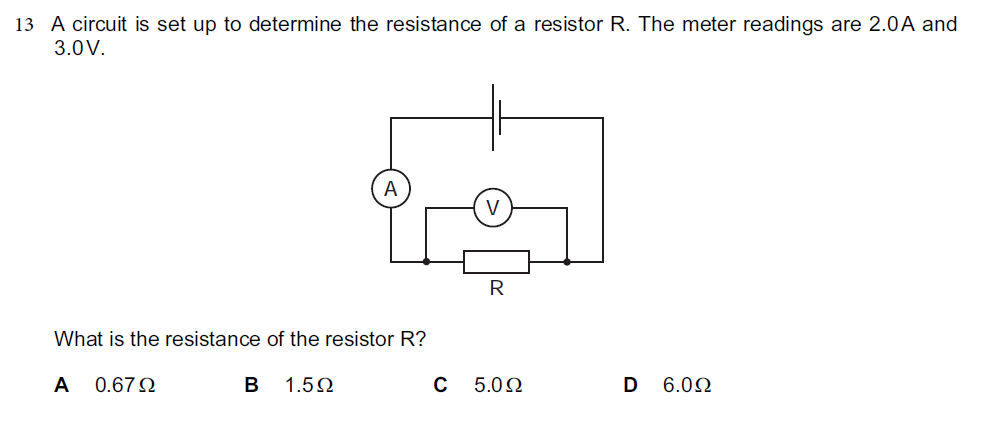

A circuit is set up to determine the resistance of a resistor R. The meter readings are $2.0\text{ A}$ and $3.0\text{ V}$.
What is the resistance of the resistor R?

$0.67\ \Omega$

$1.5\ \Omega$

$5.0\ \Omega$

$6.0\ \Omega$

3.1.2.2

3.1.2.3

+2

1

What is the unit of electromotive force (e.m.f.)?

ampere

joule

volt

watt

C5.25

C5.26

C5.27

1

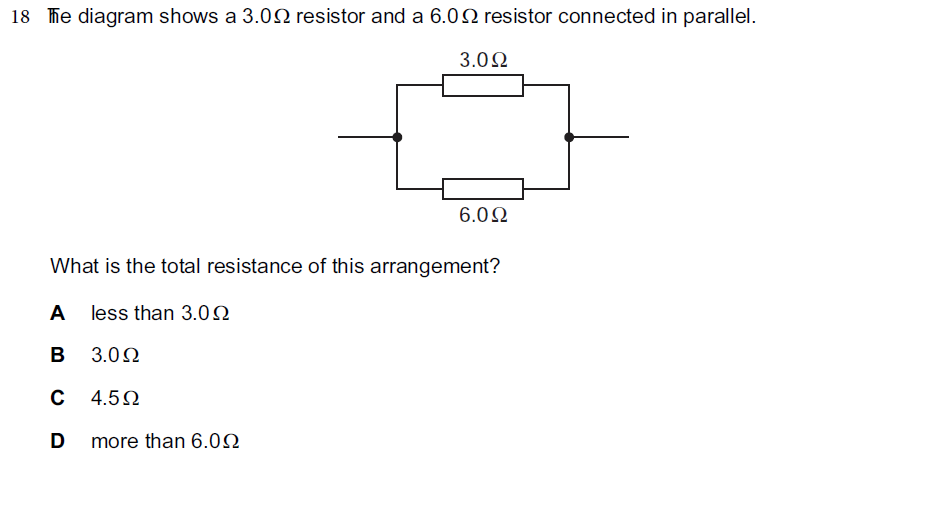

The diagram shows a $3.0\ \Omega$ resistor and a $6.0\ \Omega$ resistor connected in parallel.
What is the total resistance of this arrangement?

less than $3.0\ \Omega$

$3.0\ \Omega$

$4.5\ \Omega$

more than $6.0\ \Omega$

1

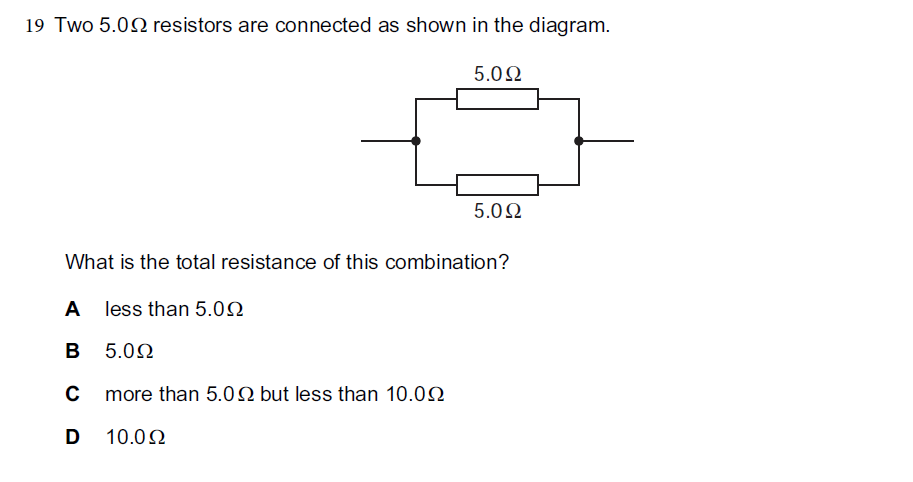

Two $5.0 \Omega$ resistors are connected as shown in the diagram.
What is the total resistance of this combination?

less than $5.0 \Omega$

$5.0 \Omega$

more than $5.0 \Omega$ but less than $10.0 \Omega$

$10.0 \Omega$

1

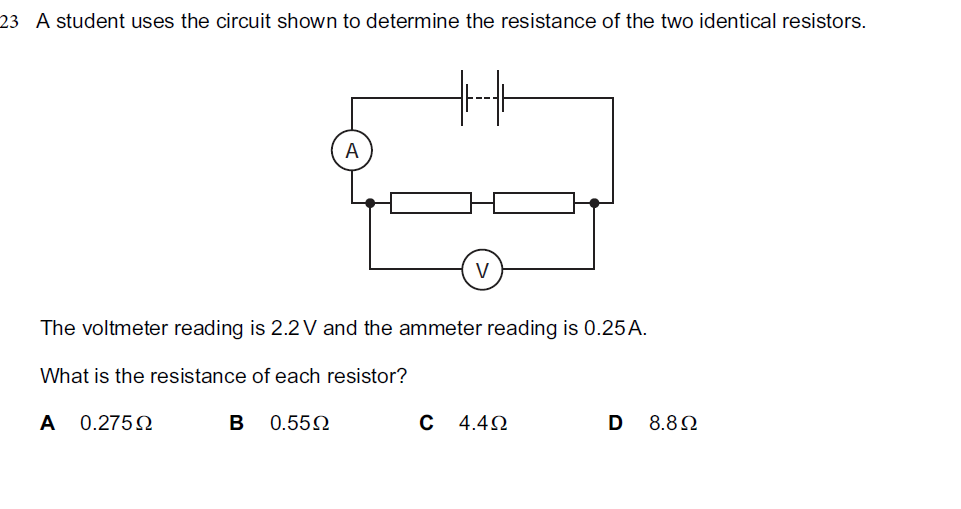

A student uses the circuit shown to determine the resistance of the two identical resistors.
The voltmeter reading is $2.2 \text{ V}$ and the ammeter reading is $0.25 \text{ A}$.
What is the resistance of each resistor?

$0.275 \Omega$

$0.55 \Omega$

$4.4 \Omega$

$8.8 \Omega$

1

What is the circuit symbol for a variable resistor?

Symbol A

Symbol B

Symbol C

Symbol D

1

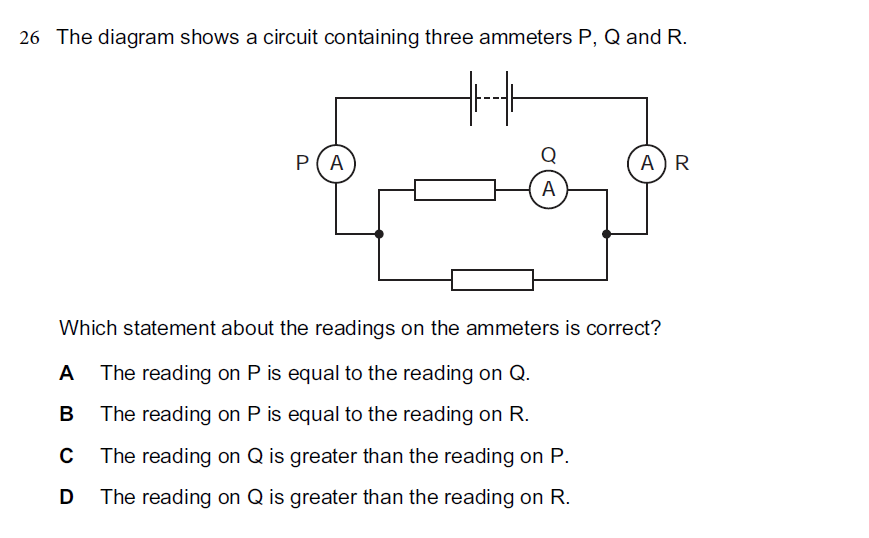

The diagram shows a circuit containing three ammeters P, Q and R.
Which statement about the readings on the ammeters is correct?

The reading on P is equal to the reading on Q.

The reading on P is equal to the reading on R.

The reading on Q is greater than the reading on P.

The reading on Q is greater than the reading on R.

1

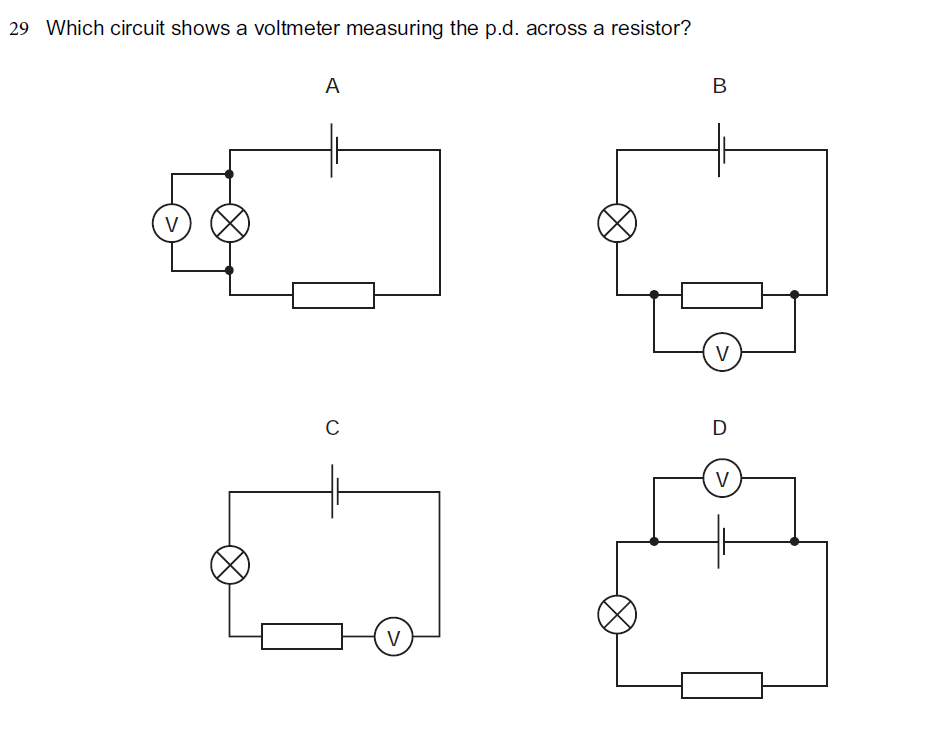

Which circuit shows a voltmeter measuring the p.d. across a resistor?

Circuit A

Circuit B

Circuit C

Circuit D

1

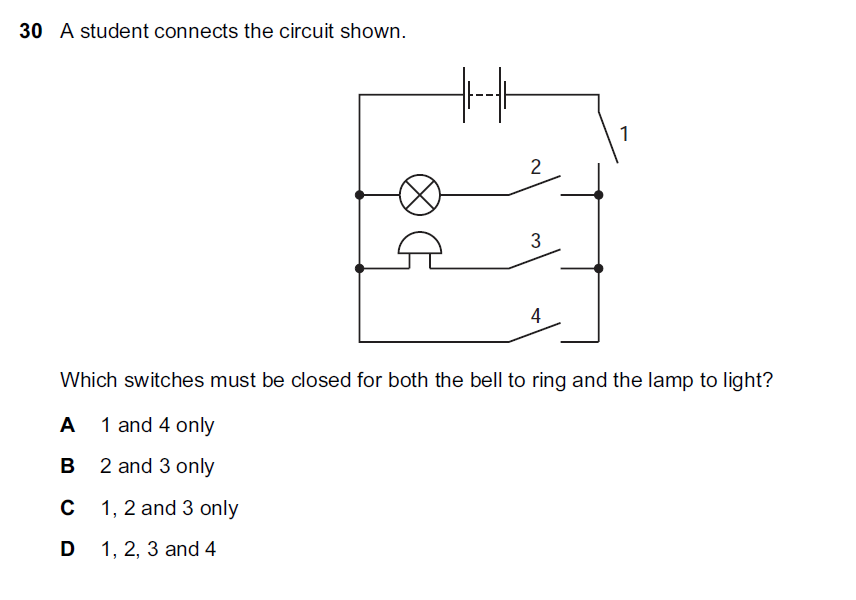

A student connects the circuit shown.
Which switches must be closed for both the bell to ring and the lamp to light?

1 and 4 only

2 and 3 only

1, 2 and 3 only

1, 2, 3 and 4

C5.25
