5 Electricity

1

A lightbulb uses electrical energy to produce light. This energy can only flow in a closed circuit.

1

Substances that electrical currents can flow through easily are called Insulators.
Substances that electrical currents cannot flow through easily are called conductors.

2

37 kW = ........ W
452 mA = ...... A

2

0.008 A = ...... mA
0.3 A = ........ mA

1

Caitlin has an ammeter with three measurement ranges: 0-0.05 A, 0-0.5 A and 0-5 A. She wants to measure a current that is somewhere between 60 mA and 100 mA. Which range is best for her to use?

1

You have 5 Identical 1.5 V batteries. You have wired all 5 batteries in a series circuit. When you measure the voltage of the circuit you measure 4.5 V. Is this possible?

1

You have 5 Identical 1.5 V batteries. You have wired all 5 batteries in a series circuit. When you measure the voltage of the circuit you measure 4.5 V. How this possible?

1

The voltage and the current both refer to the way in which a flow of electricity transports energy. (Multiple answers are correct)

2

Draw a series circuit containing:
1 Battery,
3 Lightbulbs.

2

Draw a Parallel circuit containing:
1 battery,
3 Lightbulbs

1

3 lights are in a parallel circuit. If one lightbulb breaks, the two other will stop giving light.

2

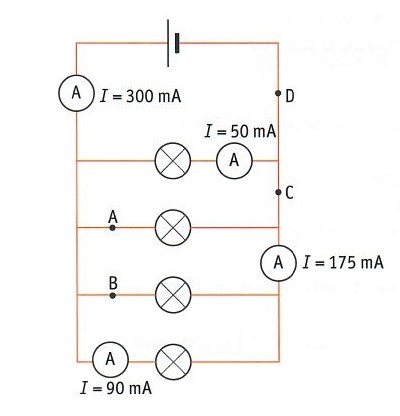

Calculate the current at point B.

1

power (W) = voltage

1

Your phone has a capacity of 3000 mAh and runs on a voltage of 4.5 V. How long can your phone run when it has a powerconsumption of 1.35 W?

1

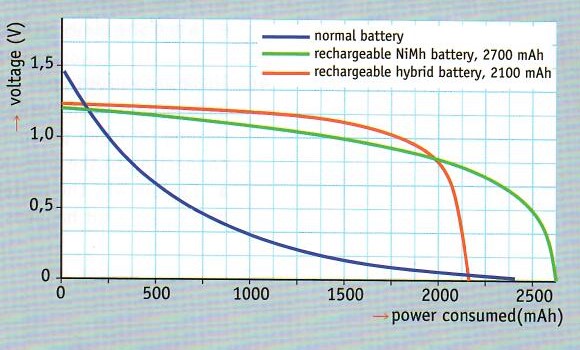

Your device needs atleast 1,0 V to operate. Which battery will run longer?

1

5 Electricity

A lightbulb uses electrical energy to produce light. This energy can only flow in a closed circuit.

Substances that electrical currents can flow through easily are called Insulators.
Substances that electrical currents cannot flow through easily are called conductors.

37 kW = ........ W
452 mA = ...... A

0.008 A = ...... mA
0.3 A = ........ mA

Caitlin has an ammeter with three measurement ranges: 0-0.05 A, 0-0.5 A and 0-5 A. She wants to measure a current that is somewhere between 60 mA and 100 mA. Which range is best for her to use?

You have 5 Identical 1.5 V batteries. You have wired all 5 batteries in a series circuit. When you measure the voltage of the circuit you measure 4.5 V. Is this possible?

You have 5 Identical 1.5 V batteries. You have wired all 5 batteries in a series circuit. When you measure the voltage of the circuit you measure 4.5 V. How this possible?

The voltage and the current both refer to the way in which a flow of electricity transports energy. (Multiple answers are correct)

Draw a series circuit containing:
1 Battery,
3 Lightbulbs.

Draw a Parallel circuit containing:
1 battery,
3 Lightbulbs

3 lights are in a parallel circuit. If one lightbulb breaks, the two other will stop giving light.

Calculate the current at point B.

power (W) = voltage

Your phone has a capacity of 3000 mAh and runs on a voltage of 4.5 V. How long can your phone run when it has a powerconsumption of 1.35 W?

Your device needs atleast 1,0 V to operate. Which battery will run longer?

To recharge a mobile, you use an adapter that is plugged into the mains socket. What is one essential component of an adapter?

A lightbulb uses electrical energy to produce light. This energy can only flow in a closed circuit.

Substances that electrical currents can flow through easily are called Insulators.
Substances that electrical currents cannot flow through easily are called conductors.

37 kW = ........ W
452 mA = ...... A

0.008 A = ...... mA
0.3 A = ........ mA

Caitlin has an ammeter with three measurement ranges: 0-0.05 A, 0-0.5 A and 0-5 A. She wants to measure a current that is somewhere between 60 mA and 100 mA. Which range is best for her to use?

You have 5 Identical 1.5 V batteries. You have wired all 5 batteries in a series circuit. When you measure the voltage of the circuit you measure 4.5 V. Is this possible?

You have 5 Identical 1.5 V batteries. You have wired all 5 batteries in a series circuit. When you measure the voltage of the circuit you measure 4.5 V. How this possible?

The voltage and the current both refer to the way in which a flow of electricity transports energy. (Multiple answers are correct)

Draw a series circuit containing:
1 Battery,
3 Lightbulbs.

Draw a Parallel circuit containing:
1 battery,
3 Lightbulbs

3 lights are in a parallel circuit. If one lightbulb breaks, the two other will stop giving light.

Calculate the current at point B.

power (W) = voltage

Your phone has a capacity of 3000 mAh and runs on a voltage of 4.5 V. How long can your phone run when it has a powerconsumption of 1.35 W?

Your device needs atleast 1,0 V to operate. Which battery will run longer?

To recharge a mobile, you use an adapter that is plugged into the mains socket. What is one essential component of an adapter?

5 Electricity

5 Electricity

A lightbulb uses electrical energy to produce light. This energy can only flow in a closed circuit.

Substances that electrical currents can flow through easily are called Insulators.Substances that electrical currents cannot flow through easily are called conductors.

37 kW = ........ W452 mA = ...... A

0.008 A = ...... mA0.3 A = ........ mA

Caitlin has an ammeter with three measurement ranges: 0-0.05 A, 0-0.5 A and 0-5 A. She wants to measure a current that is somewhere between 60 mA and 100 mA. Which range is best for her to use?

You have 5 Identical 1.5 V batteries. You have wired all 5 batteries in a series circuit. When you measure the voltage of the circuit you measure 4.5 V. Is this possible?

You have 5 Identical 1.5 V batteries. You have wired all 5 batteries in a series circuit. When you measure the voltage of the circuit you measure 4.5 V. How this possible?

The voltage and the current both refer to the way in which a flow of electricity transports energy. (Multiple answers are correct)

Draw a series circuit containing:1 Battery,3 Lightbulbs.

Draw a Parallel circuit containing:1 battery,3 Lightbulbs

3 lights are in a parallel circuit. If one lightbulb breaks, the two other will stop giving light.

Calculate the current at point B.

power (W) = voltage

Your phone has a capacity of 3000 mAh and runs on a voltage of 4.5 V. How long can your phone run when it has a powerconsumption of 1.35 W?

Your device needs atleast 1,0 V to operate. Which battery will run longer?

To recharge a mobile, you use an adapter that is plugged into the mains socket. What is one essential component of an adapter?

A lightbulb uses electrical energy to produce light. This energy can only flow in a closed circuit.

Substances that electrical currents can flow through easily are called Insulators.Substances that electrical currents cannot flow through easily are called conductors.

37 kW = ........ W452 mA = ...... A

0.008 A = ...... mA0.3 A = ........ mA

Caitlin has an ammeter with three measurement ranges: 0-0.05 A, 0-0.5 A and 0-5 A. She wants to measure a current that is somewhere between 60 mA and 100 mA. Which range is best for her to use?

You have 5 Identical 1.5 V batteries. You have wired all 5 batteries in a series circuit. When you measure the voltage of the circuit you measure 4.5 V. Is this possible?

You have 5 Identical 1.5 V batteries. You have wired all 5 batteries in a series circuit. When you measure the voltage of the circuit you measure 4.5 V. How this possible?

The voltage and the current both refer to the way in which a flow of electricity transports energy. (Multiple answers are correct)

Draw a series circuit containing:1 Battery,3 Lightbulbs.

Draw a Parallel circuit containing:1 battery,3 Lightbulbs

3 lights are in a parallel circuit. If one lightbulb breaks, the two other will stop giving light.

Calculate the current at point B.

power (W) = voltage

Your phone has a capacity of 3000 mAh and runs on a voltage of 4.5 V. How long can your phone run when it has a powerconsumption of 1.35 W?

Your device needs atleast 1,0 V to operate. Which battery will run longer?

To recharge a mobile, you use an adapter that is plugged into the mains socket. What is one essential component of an adapter?

Substances that electrical currents can flow through easily are called Insulators.
Substances that electrical currents cannot flow through easily are called conductors.

37 kW = ........ W
452 mA = ...... A

0.008 A = ...... mA
0.3 A = ........ mA

Draw a series circuit containing:
1 Battery,
3 Lightbulbs.

Draw a Parallel circuit containing:
1 battery,
3 Lightbulbs

Substances that electrical currents can flow through easily are called Insulators.
Substances that electrical currents cannot flow through easily are called conductors.

37 kW = ........ W
452 mA = ...... A

0.008 A = ...... mA
0.3 A = ........ mA

Draw a series circuit containing:
1 Battery,
3 Lightbulbs.

Draw a Parallel circuit containing:
1 battery,
3 Lightbulbs
